Sethco Magnetic Drive Centrifugal Filter System KKM-510-1/3T1
Sethco Magnetic Drive Centrifugal Filter System KKM-510-1/3T1
SKU:FIL-17413f
Efficient Sethco Magnetic Drive Centrifugal Filter System with Kynar construction, ideal for corrosive liquid filtration applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Sethco Magnetic Drive Centrifugal Filter System KKM-510-1/3T1
$2,899.99
Quantity: 1
Claim Your Seller Account
Sethco Magnetic Drive Centrifugal Filter System KKM-510-1/3T1
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

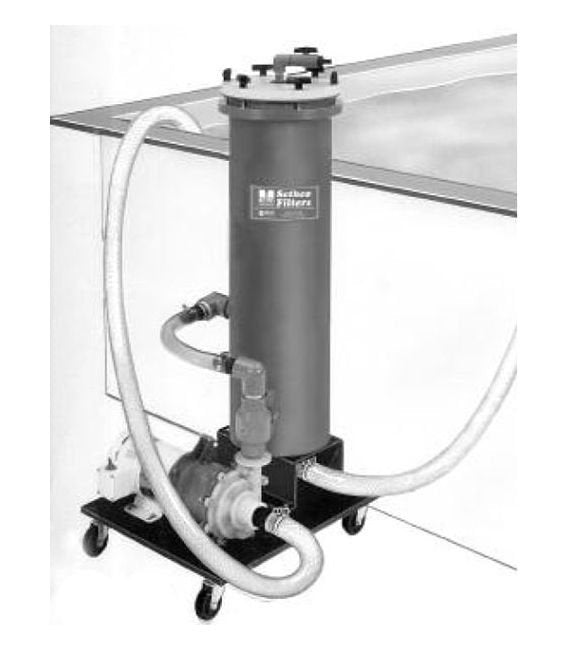

The Sethco Magnetic Drive Centrifugal Filter System in the KKM series offers efficient filtration rates ranging from 200 to 300 GPH, with a durable Kynar construction suitable for temperatures up to 210°F. Featuring a sealless pump design for leakproof operation, this system is ideal for corrosive liquid filtration in industries such as electroplating, pharmaceuticals, and more. Each system comes fully assembled with CPVC filter chambers or optional Kynar construction, ensuring long-lasting performance and reliability for sensitive solutions.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
Specifications Flow Rate
200 to 300 gph | 750 to 1100 lph
Specifications Height
28 " | 71 cm
Specifications Length
12 " | 30 cm
Specifications Manufacturer
Sethco
Specifications Material
Kynar
Specifications Max Operating Temperature
210 ºF | 99 ºC
Specifications Pump Model No
KM-510-1/3T1
Specifications Quantity Of Filter Tubes In Chamber
1 | 2
Specifications Series
KKM
Specifications Size Of Filter Tubes In Chamber
1 Tube - 20", 15 Micron | 2 Tubes - 10", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
42.0 lbs | 20.9 kg
Specifications Width
15 " | 38 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, were reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
