Sethco Magnetic Drive Centrifugal Filter System KKM Series
Sethco Magnetic Drive Centrifugal Filter System KKM Series
SKU:FIL-546a7d
Reliable Sethco Magnetic Drive Filtration Systems for corrosive liquids, optimized for sensitive applications. Leakproof operation and high-temperature resilience.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Sethco Magnetic Drive Centrifugal Filter System KKM Series
$3,499.99
Quantity: 1
Claim Your Seller Account
Sethco Magnetic Drive Centrifugal Filter System KKM Series
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

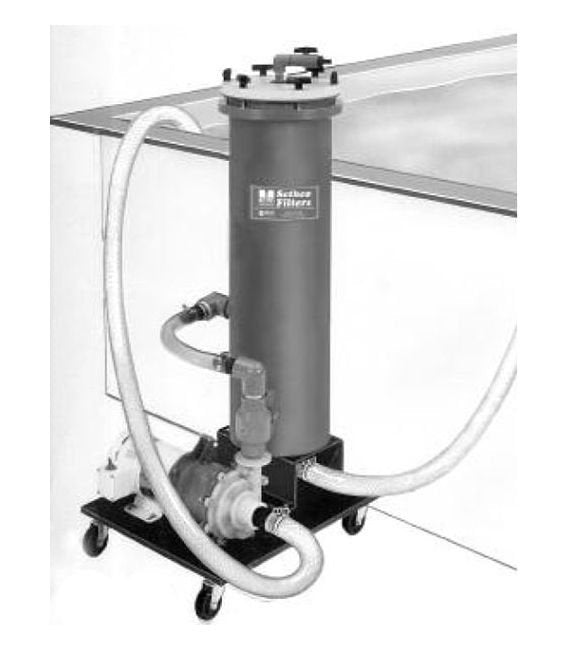

The Sethco Magnetic Drive Centrifugal Filter System in the KKM Series offers reliable and leakproof operation for corrosive liquid filtration. With pump models designed for flow rates ranging from 300 to 450 gph, these systems feature durable Kynar construction suitable for high temperatures up to 210 ºF. Each unit comes fully assembled with CPVC or optional Kynar filter chambers, accepting various filter tube sizes for controlled filtration. Ideal for electroplating, pharmaceutical, and other sensitive applications, these systems prioritize long life, dependability, and compliance with stringent industry standards.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
Specifications Flow Rate
300 to 450 gph | 1100 to 1700 lph
Specifications Height
38 " | 97 cm
Specifications Length
12 " | 30 cm
Specifications Manufacturer
Sethco
Specifications Material
Kynar
Specifications Max Operating Temperature
210 ºF | 99 ºC
Specifications Pump Model No
KM-510-1/3T1
Specifications Quantity Of Filter Tubes In Chamber
1 | 3
Specifications Series
KKM
Specifications Size Of Filter Tubes In Chamber
1 Tube - 30", 15 Micron | 3 Tubes - 10", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
52.0 lbs | 25.9 kg
Specifications Width
15 " | 38 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, were reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
