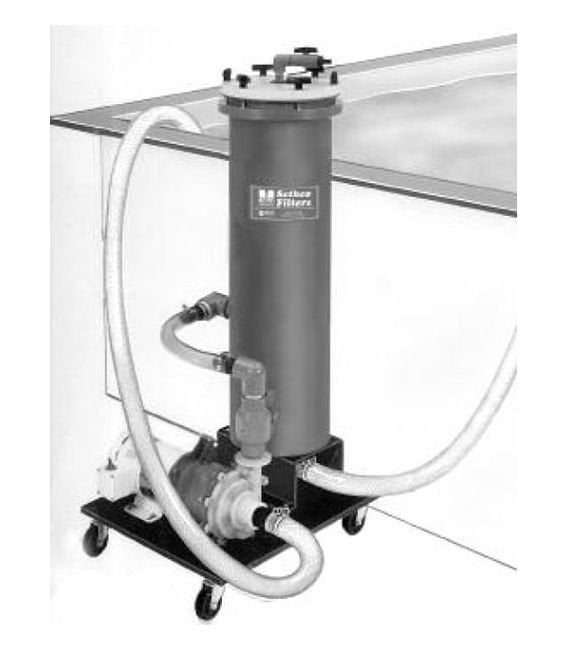

Sethco Magnetic Drive Centrifugal Filter System - KKM Series
Sethco Magnetic Drive Centrifugal Filter System - KKM Series
SKU:FIL-d35014
Experience superior corrosion resistance and precise filtration rates with the Sethco Magnetic Drive Centrifugal Filter System. Ideal for industrial applications.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Sethco Magnetic Drive Centrifugal Filter System - KKM Series
$2,499.99
Quantity: 1
Claim Your Seller Account
Sethco Magnetic Drive Centrifugal Filter System - KKM Series
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco Magnetic Drive Centrifugal Filter System in the KKM Series offers unparalleled corrosion resistance and efficient filtration rates ranging from 1 to 4500 GPH. With a sealless pump and CPVC or optional Kynar construction, these systems are ideal for electroplating, pharmaceutical, and other sensitive applications. Each system comes fully assembled, tested, and equipped with all necessary accessories for immediate use, ensuring leakproof operation and longevity. The inclusion of 15 micron filter tubes, robust materials, and rigorous quality control make these systems reliable and durable for demanding industrial settings.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
Specifications Flow Rate
600 to 1800 gph | 2200 to 6800 lph
Specifications Height
32 " | 81 cm
Specifications Length
20 " | 51 cm
Specifications Manufacturer
Sethco
Specifications Material
Kynar
Specifications Max Operating Temperature
210 ºF | 99 ºC
Specifications Pump Model No
KM-1040NT-1T1
Specifications Quantity Of Filter Tubes In Chamber
3 | 6
Specifications Series
KKM
Specifications Size Of Filter Tubes In Chamber
3 Tubes - 20", 15 Micron | 6 Tubes - 10", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
86 lbs | 42.8 kg
Specifications Width
24 " | 61 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, were reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
