Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series
Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series
SKU:FIL-fce09d
Experience leakproof and corrosion-resistant filtration with Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series. Optimal for electroplating & pharmaceutical solutions.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series
$3,499.99
Quantity: 1
Claim Your Seller Account
Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

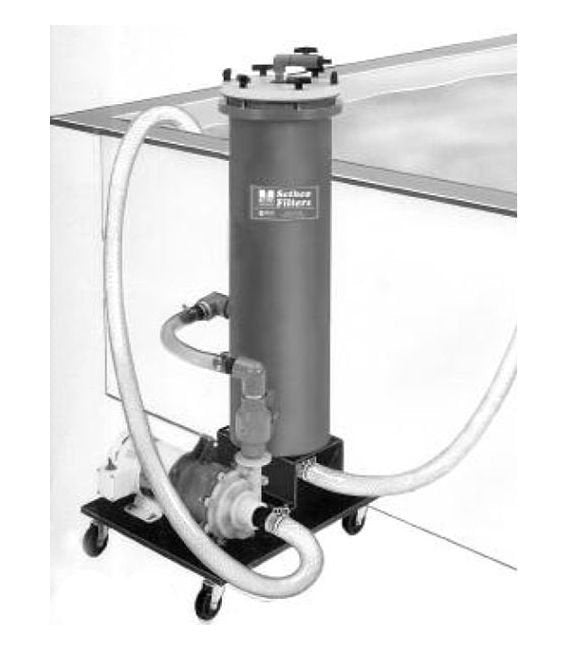

The Sethco Magnetic Drive Centrifugal Filter Systems in the DPM Series offer unparalleled corrosion resistance and precise filtration rates ranging from 1 to 4500 GPH. Featuring CPVC or optional Kynar construction, these sealless systems are ideal for electroplating, pharmaceutical, and other sensitive solutions. Each system comes fully assembled, tested, and mounted on a corrosion-resistant panel for immediate installation. With leakproof operation and a one-year warranty, Sethco ensures long-lasting, dependable performance for challenging applications.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
Specifications Flow Rate
300 to 450 gph | 1100 to 1700 lph
Specifications Height
38 " | 97 cm
Specifications Length
12 " | 30 cm
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Pump Model No
PM-510-1/3T1
Specifications Quantity Of Filter Tubes In Chamber
1 | 3
Specifications Series
DPM
Specifications Size Of Filter Tubes In Chamber
1 Tube - 30", 15 Micron | 3 Tubes - 10", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
52.0 lbs | 25.9 kg
Specifications Width
15 " | 38 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, were reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
