Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series
Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series
SKU:FIL-012d77
Enhance liquid filtration with Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series, designed for corrosive liquids & various sensitive solutions.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series
$4,999.99
Quantity: 1
Claim Your Seller Account
Sethco Magnetic Drive Centrifugal Filter Systems - DPM Series
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

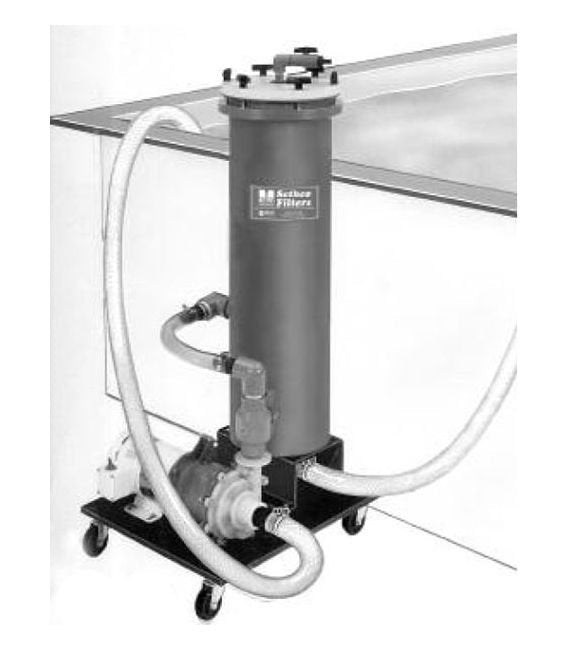

The Sethco Magnetic Drive Centrifugal Filter Systems in the DPM Series offer superior filtration capabilities ranging from 1 to 4500 GPH. Featuring a leakproof, sealless pump design with CPVC construction, these systems are ideal for handling corrosive liquids in various industries including electroplating, pharmaceutical, and radioactive solutions. Each system comes fully assembled with all necessary accessories for immediate setup on a corrosion-resistant panel. With options for Kynar construction and temperature ranges up to 210°F, these systems ensure long-lasting, leakproof operation even in the most challenging applications.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
Specifications Flow Rate
600 to 1800 gph | 2200 to 6800 lph
Specifications Height
32 " | 81 cm
Specifications Length
20 " | 51 cm
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Pump Model No
PM-1040NT-1T1
Specifications Quantity Of Filter Tubes In Chamber
3 | 6
Specifications Series
DPM
Specifications Size Of Filter Tubes In Chamber
3 Tubes - 20", 15 Micron | 6 Tubes - 10", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
86 lbs | 42.8 kg
Specifications Width
24 " | 61 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, were reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
