Sethco Magnetic Drive Centrifugal Filter Systems - High Flow Rate Filtration Solution
Sethco Magnetic Drive Centrifugal Filter Systems - High Flow Rate Filtration Solution
SKU:FIL-61e029
Corrosion-resistant Sethco Magnetic Drive Centrifugal Filter Systems for high-flow rate applications. Ideal for electroplating, pharmaceutical, and radioactive solutions.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sethco Magnetic Drive Centrifugal Filter Systems - High Flow Rate Filtration Solution
$1,899.99
Quantity: 1
Claim Your Seller Account
Sethco Magnetic Drive Centrifugal Filter Systems - High Flow Rate Filtration Solution
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

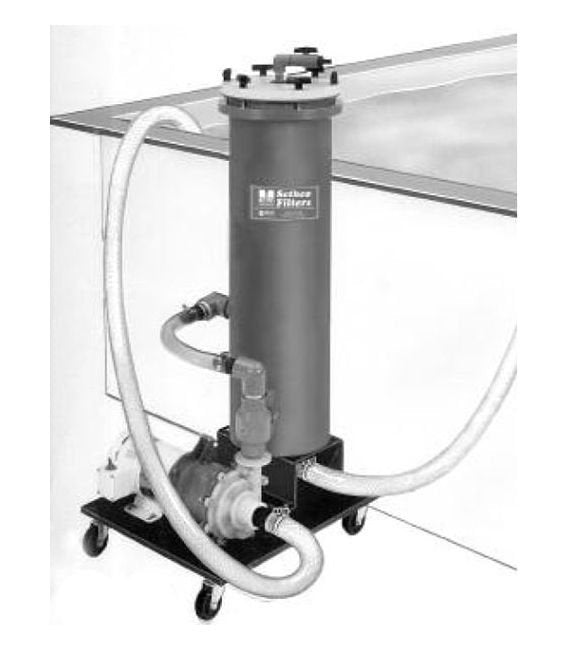

The Sethco Magnetic Drive Centrifugal Filter Systems offer exceptional corrosion resistance and high flow rates ranging from 1 to 4500 GPH. Constructed with durable CPVC or optional Kynar materials, these sealless pumps provide leakproof operation ideal for electroplating, pharmaceutical, and radioactive solutions. Each system comes fully assembled with filter tubes and accessories for immediate setup, ensuring reliable performance and extended longevity. With a one-year warranty against defects, Sethco systems prioritize quality and compliance with stringent industry standards.
Product Specifications
Filter Chamber Filter Chamber
CPVC filter chambers are standard on most systems. Kynar construction is available on some models. All chambers accept economical, standard open ended filter tubes or carbon filter tubes.
Filter Tubes Filter Tubes
Polypropylene, or Cotton, depending on application. Filter tubes are available for controlled filtration from 150 microns to 0.5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), Special B (1-3 microns), and Special C (0.5 micron). All systems are supplied with 1 set of 15 micron polypropylene tubes.
Note Note
Kynar filter systems are provided with Kynar pipe and union to connect chamber inlet and outlet. No other accessories are provided.
Specifications Flow Rate
300 to 900 gph | 1100 to 3400 lph
Specifications Height
22 " | 56 cm
Specifications Length
20 " | 51 cm
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Pump Model No
PM-1035NT-3/4T1
Specifications Quantity Of Filter Tubes In Chamber
3
Specifications Series
DPM
Specifications Size Of Filter Tubes In Chamber
3 Tubes - 10", 15 Micron
Specifications System Type
With Magnetic Drive Sealless Pump
Specifications Weight
75.0 lbs | 37.3 kg
Specifications Width
24 " | 61 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, were reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
