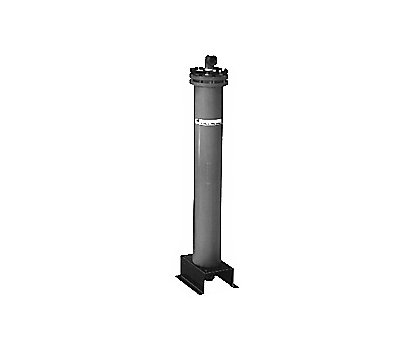

Sethco Mini Double Duty Filtration System - DC-1 1/2B | PMSP-510-1/3T1
Sethco Mini Double Duty Filtration System - DC-1 1/2B | PMSP-510-1/3T1
SKU:FIL-db1ab2
Efficient Sethco Mini Double Duty Filtration System with self-priming pump & 1lb carbon capacity. Ideal for diverse filtration needs.
Regular price
$1,349.99
Regular price
Sale price
$1,349.99
Unit price
per
Initiate Order
Sethco Mini Double Duty Filtration System - DC-1 1/2B | PMSP-510-1/3T1
$1,349.99
Quantity: 1
Claim Your Seller Account
Sethco Mini Double Duty Filtration System - DC-1 1/2B | PMSP-510-1/3T1
$1,349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

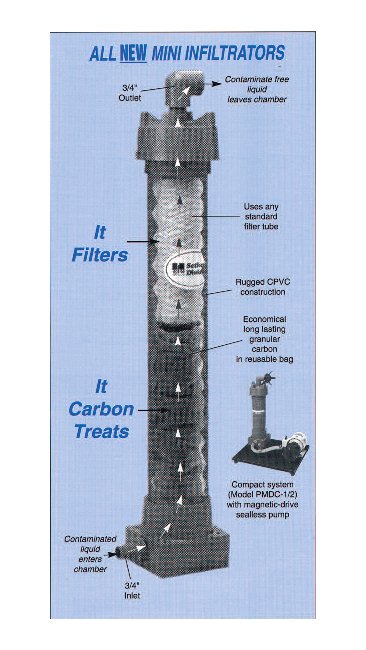

The Sethco Mini Double Duty Filtration System offers reliable filtration with a carbon capacity of 1 lb and a flow rate ranging from 50 to 550 gph. Featuring a self-priming magnetic drive pump, this system ensures efficient operation with a 1/3hp TEFC motor. With options for tank flange mounting, this system is designed for ease of installation and maintenance. Backed by Sethco's one-year warranty, it guarantees quality performance for diverse filtration needs.
Product Specifications
Motors Motors
All 115V 1-phase motors 1/4 HP, up to and including 1 HP, come standard with waterproof switch and line cord.The customer is responsible for providing overload protection of 3-phase motors.
Pump Pump
Model PMSP polypropylene, self-priming magnetic drive centrifugal pump is furnished with a TEFC motor.Model PM polypropylene, magnetic centrifugal drive pump is furnished with a TEFC motor.Model ZDX corrosion resistant CPVC vertical pump. The versatile pump is specially designed to be mounted in-tank for self priming convenience or out-of-tank to save in-tank space. The pump incorporates a unique opposing twin-impeller design to provide high volume circulation and eliminate leakage up the pump column. No bearings or seals and no wearing parts permit dry running without damage. CPVC construction eliminates any metal contact with solution.
Specifications Carbon Capacity
1 lbs
Specifications Carbon Flow Rate
50 gph | 189 lph
Specifications Chamber Model No
DC-1 1/2B
Specifications Filter Cartridge
1 Tube - 20", 15 Micron
Specifications Filter Cartridge Flow Rate
550 gph | 2082 lph
Specifications Inlet Npt
3/4 "
Specifications Manufacturer
Sethco
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Motor Tefc
1/3 hp
Specifications Options Available
Panel for tank flange mounting
Specifications Outlet Npt
3/4 "
Specifications Pump Model No
PMSP-510-1/3T1
Specifications Quantity Of Filter Tubes In Chamber
1
Specifications System Type
With Self Priming Magnetic Drive, Sealless Centrifugal Pump
Specifications Voltage And Phase Required
115/208-230V, 60 Hz, 1-Phase | 230-460V, 60 Hz, 3-Phase
Warranty Warranty
One year warranty against defective parts and workmanship. Request Mefiag's Terms and Conditions for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authorized distributor know: liquids being handled, gallons, temperature and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
