Sethco Mini Double Duty Infiltrator System - High Flow Filtration Solution

Name: Sethco Mini Double Duty Infiltrator System - High Flow Filtration Solution
Brand: Metafin Supply Company
SKU: FIL-d01ff0
Price: 1299.99 USD
Availability: OutOfStock

SKU:FIL-d01ff0

Efficient Sethco Mini Infiltrator System for reliable filtration at 50-550 GPH. Ideal for a range of applications.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

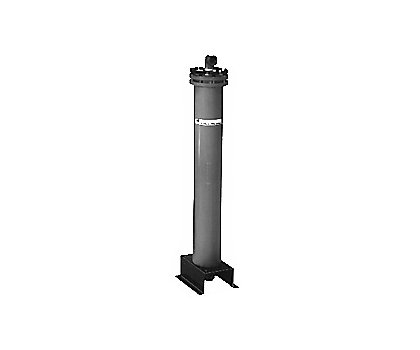

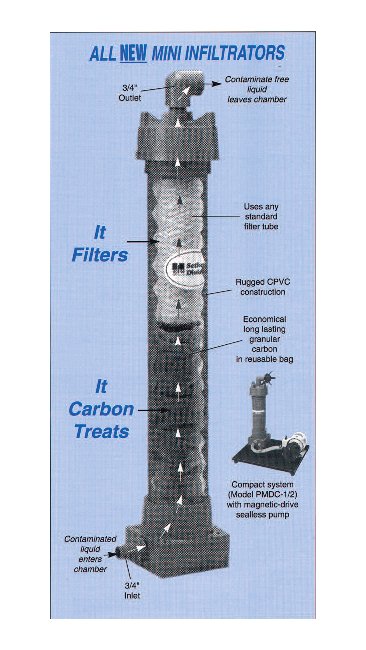

The Sethco Mini Double Duty Infiltrator System offers efficient filtration rates ranging from 50 to 550 GPH, making it an ideal choice for both consumer and institutional applications. Featuring a DC-1/2 chamber model and a ZDX-1/12C pump, this system is designed for reliable performance. With a corrosion-resistant CPVC vertical pump and a 1/12 hp TEFC motor, it can handle a maximum operating temperature of 200°F. The system includes 1 lb carbon capacity, 3/4" NPT inlet/outlet, and options for tank flange mounting. Backed by Sethco's one-year warranty, this filtration system ensures quality and durability.

Product Specifications

Motors Motors

All 115V 1-phase motors 1/4 HP, up to and including 1 HP, come standard with waterproof switch and line cord.The customer is responsible for providing overload protection of 3-phase motors.

Pump Pump

Model PMSP polypropylene, self-priming magnetic drive centrifugal pump is furnished with a TEFC motor.Model PM polypropylene, magnetic centrifugal drive pump is furnished with a TEFC motor.Model ZDX corrosion resistant CPVC vertical pump. The versatile pump is specially designed to be mounted in-tank for self priming convenience or out-of-tank to save in-tank space. The pump incorporates a unique opposing twin-impeller design to provide high volume circulation and eliminate leakage up the pump column. No bearings or seals and no wearing parts permit dry running without damage. CPVC construction eliminates any metal contact with solution.

Specifications Carbon Capacity

1 lbs

Specifications Carbon Flow Rate

50 gph | 189 lph

Specifications Chamber Model No

DC-1/2

Specifications Inlet Npt

3/4 "

Specifications Manufacturer

Sethco

Specifications Max Operating Temperature

200 ÂºF | 93 ÂºC

Specifications Motor Tefc

1/12 hp

Specifications Options Available

Panel for tank flange mounting

Specifications Outlet Npt

3/4 "

Specifications Pump Model No

ZDX-1/12C

Specifications System Type

With Vertical ZDX Pump

Specifications Voltage And Phase Required

115/208-230V, 60 Hz, 1-Phase

Warranty Warranty

One year warranty against defective parts and workmanship. Request Mefiag's Terms and Conditions for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authorized distributor know: liquids being handled, gallons, temperature and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
