Sethco Mini Double Duty Infiltrator System with Magnetic Drive Pump
Sethco Mini Double Duty Infiltrator System with Magnetic Drive Pump
SKU:FIL-a78847
Explore the Sethco Mini Double Duty Infiltrator System with Magnetic Drive Pump for efficient filtration rates & reliable performance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sethco Mini Double Duty Infiltrator System with Magnetic Drive Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
Sethco Mini Double Duty Infiltrator System with Magnetic Drive Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

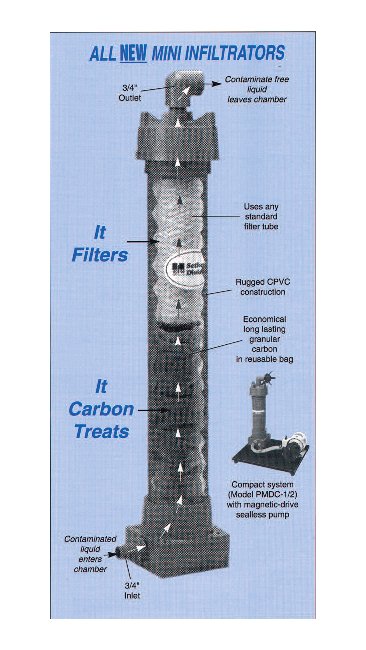

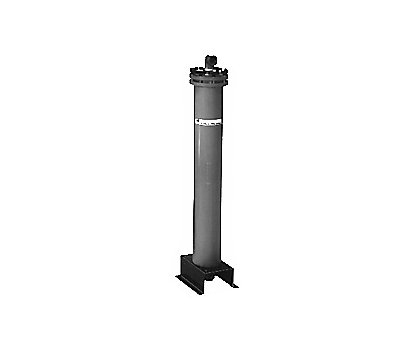

The Sethco Mini Double Duty Infiltrator System features a DC-1 1/2A chamber model with a PM-510-1/3T1 pump, offering a filtration rate ranging from 50 GPH to 550 GPH. With a sealless centrifugal pump and a 1/3 hp TEFC motor, this system operates at a maximum temperature of 180°F. It comes equipped with a 2 lbs carbon capacity, 10" filter cartridge, and inlet/outlet NPT of 3/4". The pump options include PMSP polypropylene and PM polypropylene models, ensuring high-volume circulation and corrosion resistance for versatile installations.
Product Specifications
Motors Motors
All 115V 1-phase motors 1/4 HP, up to and including 1 HP, come standard with waterproof switch and line cord.The customer is responsible for providing overload protection of 3-phase motors.
Pump Pump
Model PMSP polypropylene, self-priming magnetic drive centrifugal pump is furnished with a TEFC motor.Model PM polypropylene, magnetic centrifugal drive pump is furnished with a TEFC motor.Model ZDX corrosion resistant CPVC vertical pump. The versatile pump is specially designed to be mounted in-tank for self priming convenience or out-of-tank to save in-tank space. The pump incorporates a unique opposing twin-impeller design to provide high volume circulation and eliminate leakage up the pump column. No bearings or seals and no wearing parts permit dry running without damage. CPVC construction eliminates any metal contact with solution.
Specifications Carbon Capacity
2 lbs
Specifications Carbon Flow Rate
100 gph | 379 lph
Specifications Chamber Model No
DC-1 1/2A
Specifications Filter Cartridge
1 Tube - 10", 15 Micron
Specifications Filter Cartridge Flow Rate
400 gph | 1514 lph
Specifications Inlet Npt
3/4 "
Specifications Manufacturer
Sethco
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Motor Tefc
1/3 hp
Specifications Options Available
Panel for tank flange mounting
Specifications Outlet Npt
3/4 "
Specifications Pump Model No
PM-510-1/3T1
Specifications Quantity Of Filter Tubes In Chamber
1
Specifications System Type
With Magnetic Drive, Sealless Centrifugal Pump
Specifications Voltage And Phase Required
115/208-230V, 60 Hz, 1-Phase | 230-460V, 60 Hz, 3-Phase
Warranty Warranty
One year warranty against defective parts and workmanship. Request Mefiag's Terms and Conditions for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authorized distributor know: liquids being handled, gallons, temperature and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
