Sethco Mini Double Duty Infiltrator System with ZDX Pump
Sethco Mini Double Duty Infiltrator System with ZDX Pump
SKU:FIL-a08e6b
Upgrade to the Sethco Mini Double Duty Infiltrator System for efficient filtration and reliable performance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sethco Mini Double Duty Infiltrator System with ZDX Pump
$899.99
Quantity: 1
Claim Your Seller Account
Sethco Mini Double Duty Infiltrator System with ZDX Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

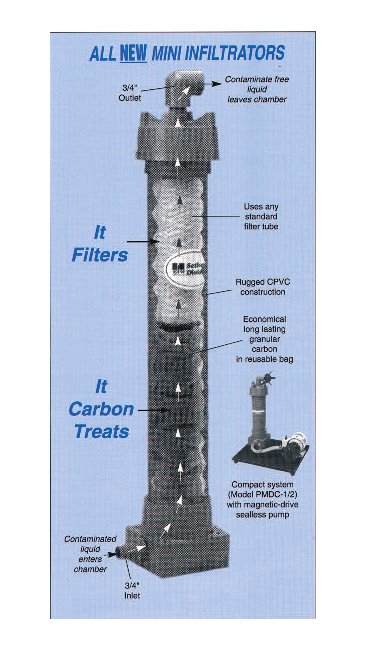

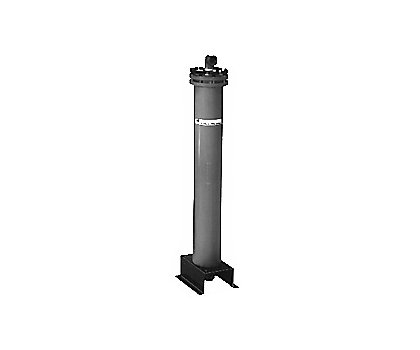

Enhance your filtration system with the Sethco Mini Double Duty Infiltrator System featuring Chamber Model DC-1 and ZDX Pump Model ZDX-1/12C. With a robust 1/12 hp TEFC motor, this system offers a Max. Operating Temperature of 200°F, Carbon Capacity of 2 lbs, and a Carbon Flow Rate of 100 gph. It includes a PMSP polypropylene self-priming magnetic drive centrifugal pump, ensuring efficient and reliable operation. Enjoy the versatility of the ZDX corrosion-resistant CPVC vertical pump design which eliminates leakage and allows for dry running without damage.
Product Specifications
Motors Motors
All 115V 1-phase motors 1/4 HP, up to and including 1 HP, come standard with waterproof switch and line cord.The customer is responsible for providing overload protection of 3-phase motors.
Pump Pump
Model PMSP polypropylene, self-priming magnetic drive centrifugal pump is furnished with a TEFC motor.Model PM polypropylene, magnetic centrifugal drive pump is furnished with a TEFC motor.Model ZDX corrosion resistant CPVC vertical pump. The versatile pump is specially designed to be mounted in-tank for self priming convenience or out-of-tank to save in-tank space. The pump incorporates a unique opposing twin-impeller design to provide high volume circulation and eliminate leakage up the pump column. No bearings or seals and no wearing parts permit dry running without damage. CPVC construction eliminates any metal contact with solution.
Specifications Carbon Capacity
2 lbs
Specifications Carbon Flow Rate
100 gph | 379 lph
Specifications Chamber Model No
DC-1
Specifications Inlet Npt
3/4 "
Specifications Manufacturer
Sethco
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Tefc
1/12 hp
Specifications Options Available
Panel for tank flange mounting
Specifications Outlet Npt
3/4 "
Specifications Pump Model No
ZDX-1/12C
Specifications System Type
With Vertical ZDX Pump
Specifications Voltage And Phase Required
115/208-230V, 60 Hz, 1-Phase
Warranty Warranty
One year warranty against defective parts and workmanship. Request Mefiag's Terms and Conditions for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authorized distributor know: liquids being handled, gallons, temperature and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
