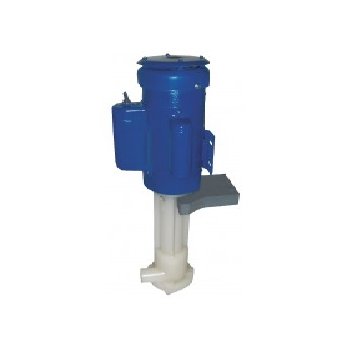

Sethco PVDF Sealless Cantilever Pump ZKX-3/4CHHS-3/4T1

Name: Sethco PVDF Sealless Cantilever Pump ZKX-3/4CHHS-3/4T1
Brand: Metafin Supply Company
SKU: PUM-b8fa03
Price: 3366.0 USD
Availability: OutOfStock

SKU:PUM-b8fa03

Reliable Sethco ZKX PVDF Sealless Cantilever Pump with 3/4 HP, 41 gpm max flow, and durable Kynar construction. Ideal for institutional use.

$3,366.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sethco ZKX Series PVDF Sealless Cantilever Pump is a reliable solution for various applications. With a horsepower of 3/4 and a max flow of 41 gpm, this pump boasts a durable Kynar construction with EPDM O-Rings, ensuring chemical resistance and long-term performance. It features a stainless steel shaft, bearing-free design, and can operate at temperatures up to 210°F. Suitable for single-phase operation, this pump includes essential components like an on-off switch, line cord, and plug, making installation hassle-free. Sethco pumps are known for their quality and efficiency, making the ZKX Series a trusted choice for institutional and government procurement.

Product Specifications

Note Note

Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation

Specifications Bearing Material

Bearing Free

Specifications Construction

Kynar (PVDF) with EPDM O-Rings

Specifications Horsepower 50hz60hz

3/4

Specifications Inlet Connection

1 1/4" NPT

Specifications Manufacturer

Sethco

Specifications Max Flow 60 Hz

41 gpm | 155 lpm

Specifications Max Head Tdh 60 Hz

47 ft | 14.3 m

Specifications Max Operating Temperature

210 ÂºF | 99 ÂºC

Specifications Motor Specifications

115V, 50/60Hz, 1ph TEFC with On-Off Switch, Line Cord & Plug

Specifications Outlet Connection

1" NPT

Specifications Phase

Single

Specifications Price

3366.00 USD

Specifications Shaft Material

Stainless Steel with Kynar Sleeve

Specifications Voltage

115 V

Specifications Weight Net

52 lbs | 23.6 kg
