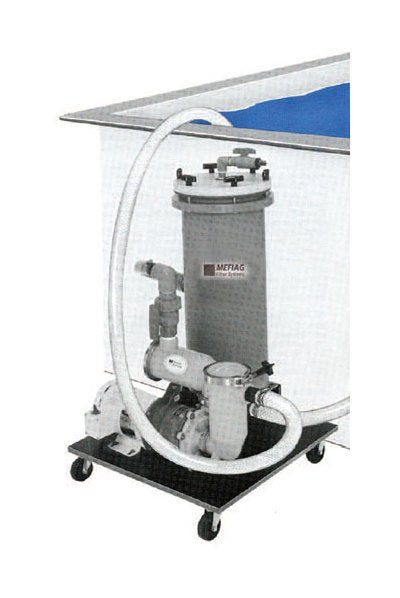

Sethco Self-Priming Magnetic Drive Filter System - 900-2700 GPH
Sethco Self-Priming Magnetic Drive Filter System - 900-2700 GPH
SKU:FIL-646255
Reliable Sethco Self-Priming Filter System - Corrosion-resistant, self-priming, magnetic drive pump for efficient filtration. Ideal for electroplating, pharmaceuticals, and more.
Regular price
$3,599.99
Regular price
Sale price
$3,599.99
Unit price
per
Initiate Order
Sethco Self-Priming Magnetic Drive Filter System - 900-2700 GPH
$3,599.99
Quantity: 1
Claim Your Seller Account
Sethco Self-Priming Magnetic Drive Filter System - 900-2700 GPH
$3,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco Self-Priming Magnetic Drive Filter System offers reliable and corrosion-resistant filtration solutions with a self-priming, sealless, magnetic drive pump. With a flow rate ranging from 900 to 2700 GPH, this system is ideal for industries like electroplating, pharmaceuticals, and more. Featuring CPVC construction, easy filter tube replacement, and excellent chemical resistance, Sethco ensures a trouble-free and efficient filtration process. Each system comes fully assembled, tested, and includes essential accessories for immediate start-up.
Product Specifications
Filter Chamber Filter Chamber
Thirteen chamber sizes for depth filtration from 50 GPH to 4400 GPH (190-15,200 LPM). All of the chambers are available in high temperature CPVC (200ºF/93ºC Max.), accept any standard double open-end filter or carbon tube, and provide from 2.1 to 84 square feet of filtration area. Filter tube replacement is fast and easy. PVDF chambers are available on some models.
Filter Tubes Filter Tubes
Filter tubes are available for controlled filtration from 150 microns to .5 micron. Standard densities are coarse (50 microns), medium (25 microns), fine (15 microns), X-fine (10 microns), X-X fine (5 microns), Special B (1-3 microns), and Special C (.5 micron). Carbon tubes can be used for simultaneous carbon treatment and filtration.
Pump Pump
Sethco "PMSP" pumps combine the convenience of selfpriming, the dependability of magnetic drive and the trouble-free performance of leakproof sealless construction. They are offered in 5 sizes and feature excellent chemical resistance and run dry capability. Standard polypropylene pumps (PMSP models) are suitable for temperatures to 180ºF. A PVDF pump may be substituted (model KMSP) for temperatures to 200ºF and applications such as chromic acid.
Specifications Flow Rate
900 to 2700 gph | 1150 to 10000 lph
Specifications Height
47 " | 120 cm
Specifications Length
24 " | 61 cm
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Pump Model No
PMSP-1040NT-1T1
Specifications Quantity Of Filter Tubes In Chamber
3 | 9
Specifications Size Of Filter Tubes In Chamber
3 Tubes - 30", 15 Micron | 9 Tubes - 10", 15 Micron
Specifications System Type
Self Priming, Magnetic Drive Sealless Centrifugal Pump
Specifications Weight
97 lbs | 44 kg
Specifications Width
24 " | 61 cm
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know: liquids being handled, gallons, temperatures and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Mefiag is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
