Sethco Single Tube Filter Chamber

Name: Sethco Single Tube Filter Chamber
Brand: Metafin Supply Company
SKU: FIL-5d01d2
Price: 399.99 USD
Availability: OutOfStock

SKU:FIL-5d01d2

Enhance filtration efficiency with the Sethco Single Tube Filter Chamber. CPVC construction, high capacity, and easy maintenance make it ideal for industrial filtration applications.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

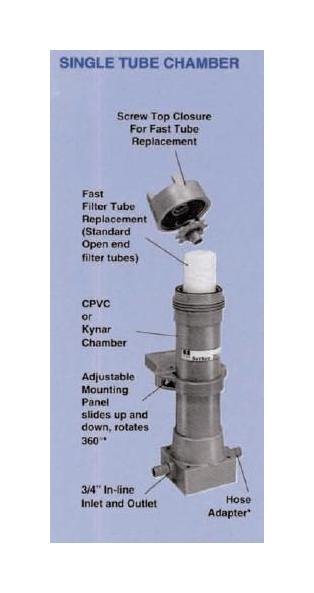

The Sethco Single Tube Filter Chamber, from the renowned Sethco Corrosion Resistant Filter Chambers line, offers exceptional filtration with a capacity ranging from 75 GPH to 7200 GPH. Constructed with CPVC, CPVC/Clear PVC, or Kynar®, this chamber is designed for in-tank or out-of-tank filtration needs. With a screw top cover for easy filter tube replacement, it features a solid, integral one-piece shell and base design. Engineered for compatibility with standard filter or carbon filter cartridges, it ensures efficient and reliable filtration in industrial settings.

Product Specifications

Custom Twin Chamber Systems Available Custom Twin Chamber System

Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.

Note Note

Figures shown is for DD series, KK series, rated at 85 psi @ 72ÂºF

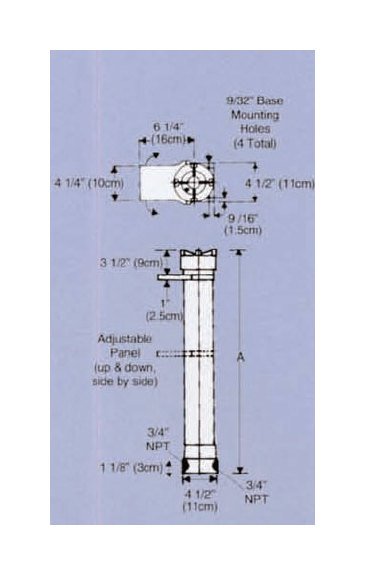

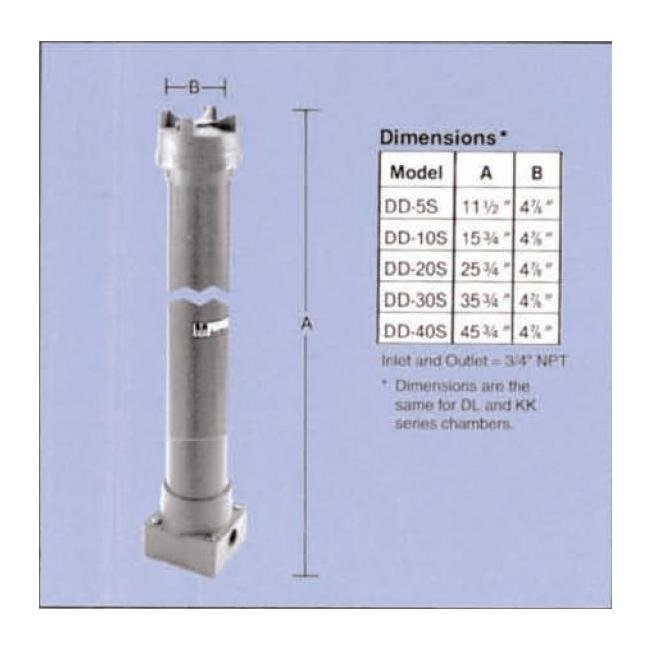

Specifications Dimension A

45-3/4 "

Specifications Dimension B

4-7/8 "

Specifications Inletoutlet

3/4 in NPT

Specifications Manufacturer

Sethco

Specifications Material

CPVC

Specifications Max Pressure At 72f

100 psi

Specifications Max Temperature

200 ÂºF

Specifications Quantity Of Filter Tubes In Chamber

1 | 4

Specifications Recommended Filtration Rate Contamination High

450 to 600 gph

Specifications Recommended Filtration Rate Contamination Low

600 to 900 gph

Specifications Series

DD Series

Specifications Size Of Filter Tubes In Chamber

1 Tube - 40", 15 Micron | 4 Tubes - 10", 15 Micron

Specifications Single Or Multi Filter Tube Chambers With

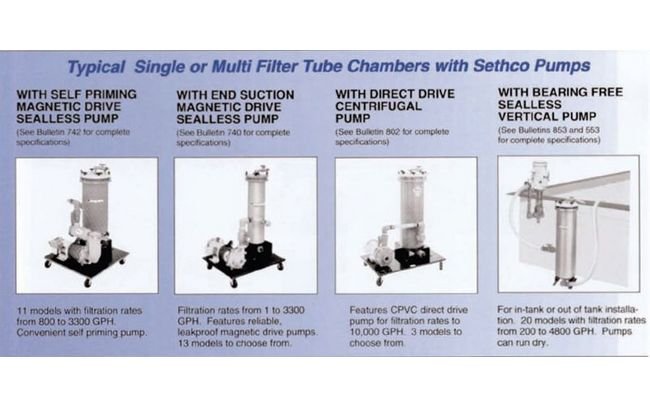

WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry. | WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. 3 models to choose from. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump.

Specifications Weight

9.1 lbs

Warranty Warranty

One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
