Sethco Single Tube Filter Chamber - Kynar® Construction, 75-7200 GPH
Sethco Single Tube Filter Chamber - Kynar® Construction, 75-7200 GPH
SKU:FIL-ce8122
Sethco Single Tube Filter Chamber - Kynar® construction, recommended for filtration rates of 75-7200 GPH
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sethco Single Tube Filter Chamber - Kynar® Construction, 75-7200 GPH
$499.99
Quantity: 1
Claim Your Seller Account
Sethco Single Tube Filter Chamber - Kynar® Construction, 75-7200 GPH
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

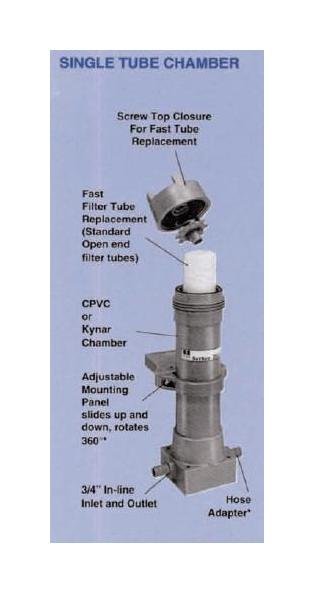

Experience superior filtration with the Sethco Single Tube Filter Chamber from the KK Series, crafted with durable Kynar® material for high chemical resistance. With a Max. Temperature of 210 °F and Pressure of up to 100 psi, this chamber is designed for low to high contamination rates with a filtration capacity ranging from 75 to 300 GPH. Featuring easy filter tube replacement and a one-year warranty, this chamber is ideal for governmental and institutional filtration applications.
Product Specifications
Custom Twin Chamber Systems Available Custom Twin Chamber System
Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.
Note Note

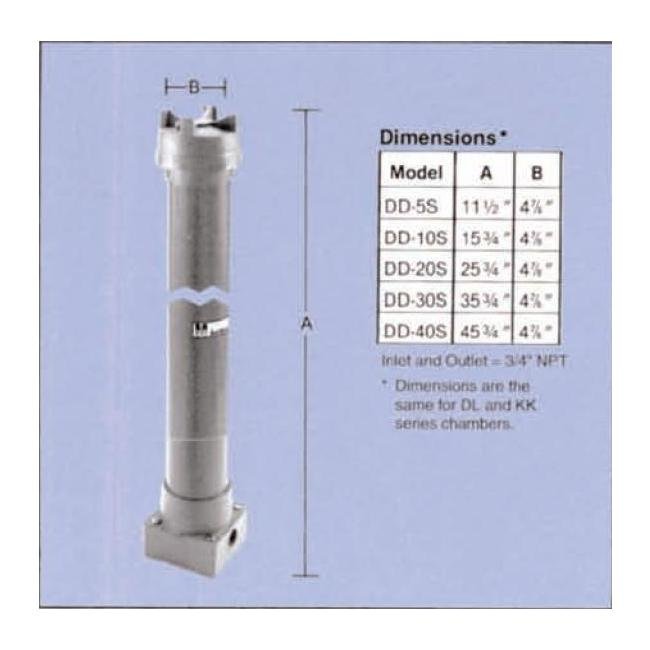

Figures shown is for DD series, KK series, rated at 85 psi @ 72ºFAdd approximately 2 pounds for Kynar® chambers

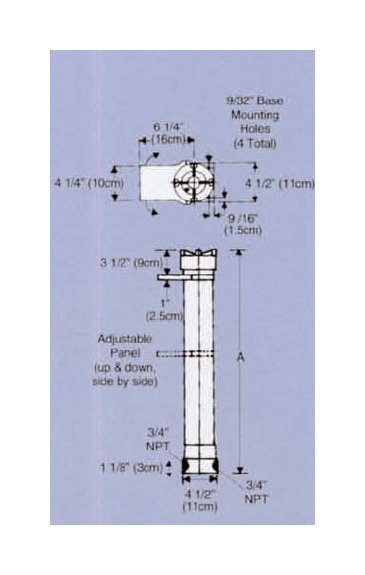

Specifications Dimension A
15-3/4 "
Specifications Dimension B
4-7/8 "
Specifications Inletoutlet
3/4 in NPT
Specifications Manufacturer
Sethco
Specifications Material
Kynar®
Specifications Max Pressure At 72f
100 psi
Specifications Max Temperature
210 ºF
Specifications Quantity Of Filter Tubes In Chamber
1
Specifications Recommended Filtration Rate Contamination High
75 to 150 gph
Specifications Recommended Filtration Rate Contamination Low
150 to 300 gph
Specifications Series
KK Series
Specifications Size Of Filter Tubes In Chamber
1 Tube - 10", 15 Micron
Specifications Single Or Multi Filter Tube Chambers With

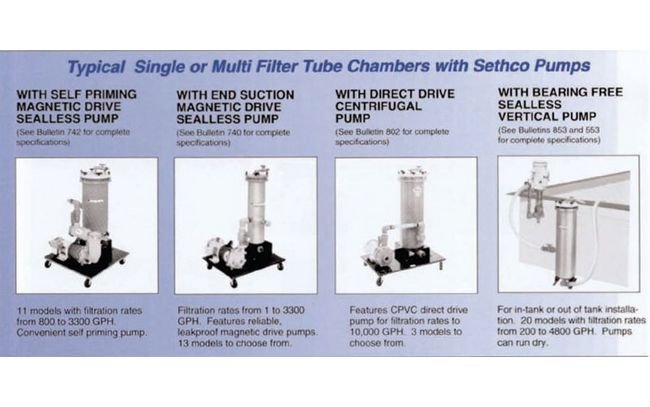

WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry. | WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. 3 models to choose from. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump.
Specifications Weight
6.30 lbs
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
