Sethco SSF-15C Single Filter Tube
Sethco SSF-15C Single Filter Tube
SKU:FIL-481b67
Experience superior corrosion-resistant filtration with the Sethco SSF-15C Single Filter Tube for industrial processes.
Regular price
$1,186.00
Regular price
Sale price
$1,186.00
Unit price
per
Initiate Order
Sethco SSF-15C Single Filter Tube
$1,186.00
Quantity: 1
Claim Your Seller Account
Sethco SSF-15C Single Filter Tube
$1,186.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

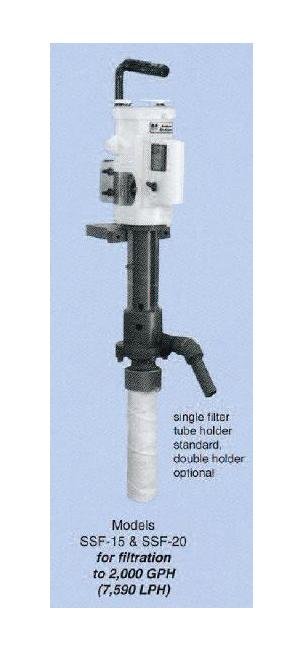

The Sethco SSF-15C Single Filter Tube is a corrosion-resistant CPVC vertical pump designed to filter, agitate, and treat corrosive solutions commonly used in metal finishing shops, laboratories, and chemical processes. With a maximum filtration rate of 1500 gph and highly durable construction, this filtration system ensures efficient and reliable performance. Equipped with a 1/6 hp motor, precision-wound polypropylene fiber filter tubes, and double filter holder option, the Sethco SSF-15C delivers superior filtration quality and longevity. Backed by a one-year warranty, this Sethco product is engineered to meet the rigorous demands of industrial applications.
Product Specifications
Specifications Effective Filtration

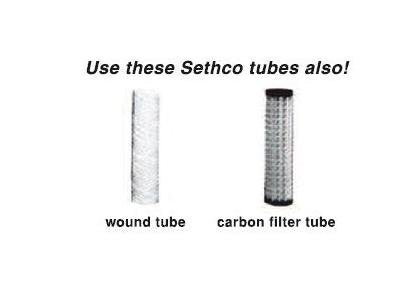

Sethco suction filter systems are equipped with easily inserted. appropriately sized Sethco depth filter tubes. These are precision wound polypropylene fiber over a polypropylene perforated supporting core, forming hundreds of funnel shaped tunnels. Each layer of fiber serves as its own filter screen. The close winding pattern (density) determines the size of the particle retention. Filter tubes are available with solids handling retention values of 50 down to 0.5 micron. Sub-micron filter tubes are also available.Depth filtration area over the entire thickness of the Sethco No. 5 filter tube is 2.0 sq. ft.; of the No. 10 filter tube is 3.5 sq. ft.; of the No. 20 filter tube is 7.0 sq. ft.; and of the No. 30 filter tube is 10.5 sq. ft. Simultaneous carbon treatment and filtration to 10 micron can be achieved by using Sethco carbon/filter tubes.
Specifications Features
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Sethco or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations. Since the policy of Sethco is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligations to previous or future customers.
Specifications Frequency
60/50 Hz
Specifications Manufacturer
Sethco
Specifications Materials Of Construction
The high strength qualities and rigidity of CPVC make the SSF Series suction filter systems extremely rugged, yet wear and impact resistant, and capable of handling the roughest of corrosive liquids and sensitive solutions at 200 ºF (93 ºC). Wetted parts are CPVC so there is no metal contact with liquid.
Specifications Max Filtration Rate
1500 gph
Specifications Max Immersion Level Dimensions
9 "
Specifications Max Pressure
22 ft
Specifications Min Immersion Level Dimensions
5-5/16 "
Specifications Model
SSF-15C
Specifications Motors
Sethco "SSF" electric motors are all totally enclosed, fan cooled. U.L. recognized, CSA approved and continuous duty rated. The motors are protected by special corrosion resistant paints and insulated windings. In addition, they have a corrosion resistant drip cover. The motors are equipped with over-sized, double sealed ball bearings, and have a one-piece shaft to prevent impeller whip and assure long life. All 1/6 horsepower and larger motors are equipped with a lip seal where the stainless steel shaft enters the motor to help prevent vapors and liquid from entering.
Specifications Motor Power
1/6 hp
Specifications Net Weight
24 lbs
Specifications Options
Double Filter Holder
Specifications Phase
Single (Standard) | Three
Specifications Price
1186.00 USD
Specifications Standard Filter Tube
(1) MSC15P10P
Specifications Voltage
(Standard) 115V 1PH V | 230/460V 3PH V | 230V 1PH V
Specifications Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Sethco or an authorized distributor know: liquids being handled, gallons, temperature and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations. Since the policy of Sethco is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligations to previous or future customers.
