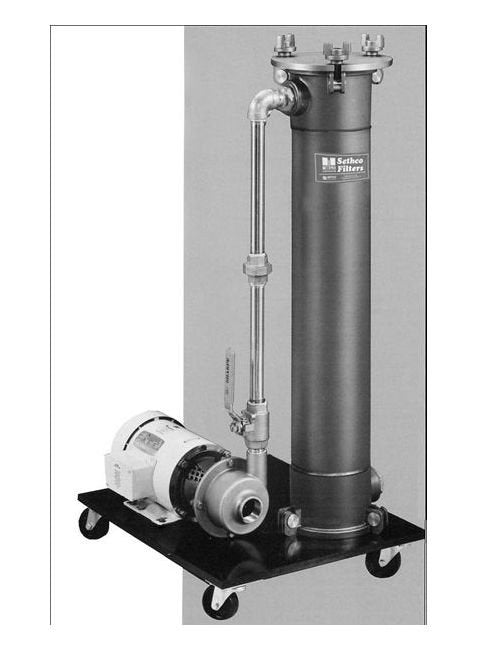

The Sethco Stainless Steel Centrifugal Filter Systems offer powerful corrosion-resistant filtration of hot alkaline solutions, acid solutions, solvents, and hydraulic fluids. Built with durable stainless steel 316, these compact and leakproof filter systems come in six models, ensuring continuous operation in industrial and plating plants at temperatures up to 210°F. With filtration rates ranging from 690 GPH to 3900 GPH, these systems provide dependable performance, easy maintenance, and portability. Sethco's commitment to quality and workmanship ensures each unit is fully equipped for immediate operation, making them ideal for institutional and industrial applications requiring reliability and efficiency.
Product Specifications
Features Features
6 models to choose from with filtration rates from 100-2700 GPH Filters corrosive liquids at temperatures to 210ºF Removes particles down to .5 micron Cover swivels for quick easy filter tube changeover Leakproof, trouble-free operation Portable One year warranty
Filter Chamber Filter Chamber

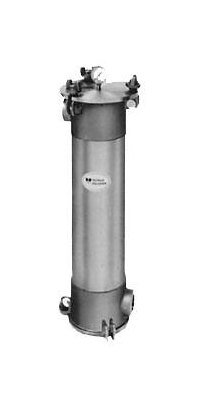

Sethcoâs "SS" Series stainless steel filter chambers are available in 6 models in capacities from 120 to 2700 GPH (454 to 10,220 LPH) at pressures to 150 psi (10kg/cm²).Corrosion resistant type 316 stainless steel construction makes Sethco'sfilter chambers suitable for filtering most corrosive aqueous or organic liquids without product contamination. Viton O-rings are standard on all models. Teflon is optional for both. These chambers offer quick, easy filter change over.
Filter Tubes Filter Tubes
Sethco offers a wide selection of cotton and polypropylene filter tubes to meet your specific requirements. Filter tubes are available for controlled filtration from 150 microns down to .5 microns. Cotton, and polypropylene filter tubes are multi-layered processed yarn wound around either perforated stainless or perforated polypropylene core. Each chamber is equipped with a set of #10; cotton, 15 micron tubes with a SS core. Polypropylene tubes are available at no extra charge. Cotton filter tubes are recommended for moderately acid and moderately alkaline solutions (pH 3-11) as well as most solvents. Polypropylene filter tubes are recommended for concentrated acid and concentrated alkaline solutions. We suggest that you include a carton of additional filter tubes with your order.
Hose Hose
Nylon reinforced vinyl hose is supplied when it is suitable for stated application and temperature. Always advise your application and temperature.
Motors Motors
Sethco makes available a wide choice of continuous duty, TEFC or explosion proof motors(Observes all safety precautions (such as grounding and bonding requirements) when pumping flammable solutions, as required).The 1/6 and 1/2 HP pumps are normally equipped with single phase motors. One and two HP pumps are provided with a three phase motor. A motor switch and line cord is supplied for all 1/6 HP motors and is optional for other motors up to 1 HP.
Note Note
Complete model designation includes type of mechanical seal furnished with system.
Recommended For Recommended For
Filtering all common alkaline and cyanide plating solutions and some acid baths.(Add nickel up to 5 oz./gal. sulfuric acid at room temperature) Photo resist solutions (See Optional Equipment A). Solvents Ultrasonic CleanersAlkaline Type: Hot Alkaline Cleaners - Emulsion CleanersAcid Type: pH 4 and aboveSolvent Type: Chlorothene - Trichlorethylene - CarbonTetrachloride -Freon Hydraulic Fluids
Sethco Pumps Sethco Pumps

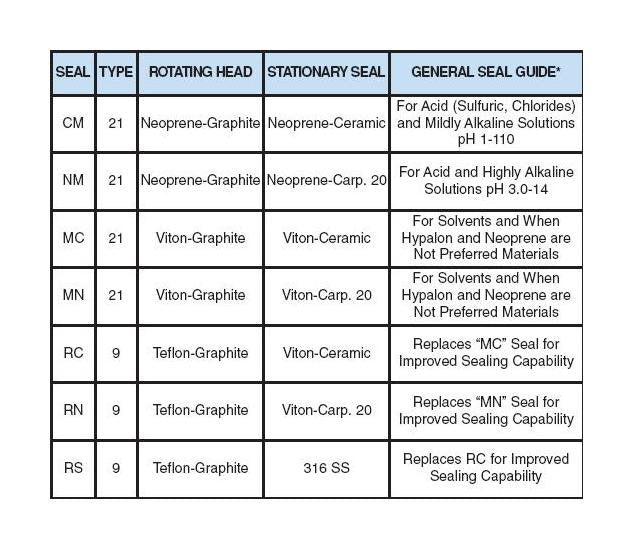

The centrifugal pumps, constructed of 316 stainless steel, are close coupled to their motors. The pumps are equipped with appropriate mechanical seals, selected for the application. These mechanical seals are available in various materials of construction, depending on application.For specifications, see table 2 on back page or visit Sethcoâswebsite at www. sethco.com for complete information.
Specifications Base
All systems with multi tube chambers are mounted on a rigid plastic panel on rubber tire ball bearing casters. Single tube systems are provided with panel on rubber bumpers.
Specifications Filter Chamber Model
SS-130
Specifications Filter Systems For Photo Resist
Filter chamber is equipped with Teflon O-rings. Pump is equipped with Teflon O-ring and #9; ceramic-graphite-Teflon(RC) mechanical seal. Filter tube is cotton, X-fine density with stainless steel core. Motor is explosion proof. Series is SSI-RCE.
Specifications Flow Control Valve
Regulates flow of liquid being filtered.
Specifications Hose Note 1
16 ft. 1/2 in ID
Specifications Manufacturer
Sethco
Specifications Optional Motors
115/230 V, 50/60 Hz, 1 ph, Expl. Prf. | 208-220/380-440 V, 50/60 Hz, 3 ph., TEFC (Includes 3 phase waterproof switch.) | 230 V, 50 Hz, 1 ph., TEFC
Specifications Overall Dimensions
14 x 16 x 33 " | 35 x 40 x 88 cm
Specifications Pump Flow
690 gph | 2600 lph
Specifications Pump Model No
SI-1/3
Specifications Pump Pressure
22 psi
Specifications Quantity Of Filter Tubes In Chamber
1 | 3
Specifications Recommended Filtration Rate
300 to 450 gph | 375 to 550 lph
Specifications Sethco Quality And Workmanship
Only the finest workmanship and materials are used in Sethco equipment. Each unit is carefully tested before it is shipped and comes to you fully equipped, ready for instant operation.
Specifications Size Of Filter Tubes In Chamber
1 Tube - 30", 15 Micron | 3 Tubes - 10", 15 Micron
Specifications Standard Motor Characteristics
1/6 HP, 115V, 60 Hz, 1ph
Specifications Weight
65.0 lbs | 29.0 kg
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Sethco or an authorized distributor know; liquids being handled, gallons, temperatures and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations.Since the policy of Sethco is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
