Sethco Stainless Steel Filter Chambers
Sethco Stainless Steel Filter Chambers
SKU:FIL-aba4fc
Sethco Stainless Steel Filter Chambers - Corrosion-resistant with quick filter changeover for efficient liquid filtration. Available in 6 models with capacities up to 2700 GPH.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Sethco Stainless Steel Filter Chambers
$1,299.99
Quantity: 1
Claim Your Seller Account
Sethco Stainless Steel Filter Chambers
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet demanding filtration needs with Sethco's Stainless Steel Filter Chambers. Constructed from corrosion-resistant type 316 stainless steel, these chambers come in 6 models with capacities ranging from 120 to 2700 GPH. Ideal for filtering corrosive liquids to microscopic clarity, they offer pressure resistance up to 150 psi. With features like Viton O-rings, quick filter changeover, and compatibility with various fluids from solvents to acids, these chambers assure reliability and efficiency in diverse applications.
Product Specifications
Applications Applications
Corrosive LiquidsOils and SolventsPaints and LacquersPharmaceuticalsPhotographic SolutionsPlating SolutionsWater Purification
Corrosion Resistant Stainless Steel Construction Corrosion Resis

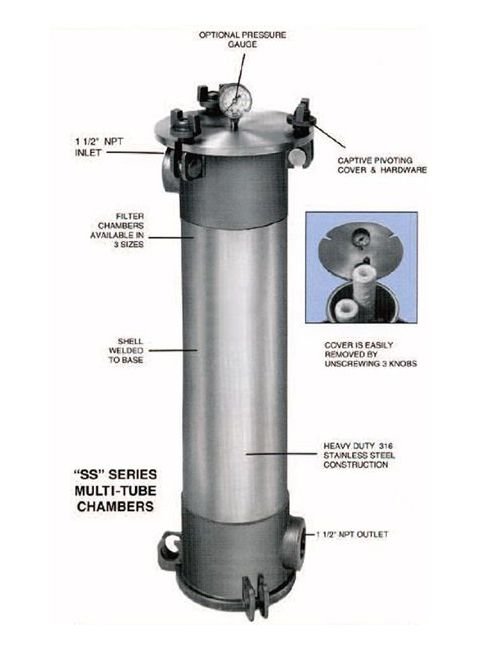

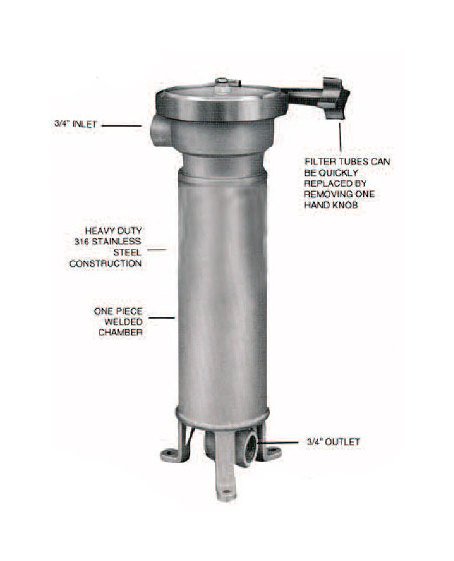

Sethco's "SS" Series stainless steel filter chambers are available in 6 models in capacities from 120 to 2700 GPH (454 to 10,220 LPH) for filtering light or heavy fluids to microscopic clarity at pressures to 150 psi (10kg/cm2). Corrosion resistant type 316 stainless steel construction makes Sethco's filter chambers suitable for filtering most corrosive aqueous or organic liquids without product contamination. Viton O-rings are standard, PTEF is optional. These chambers are suitable for a wide range of applications including solvents, alkalies, and some acids and offer quick, easy filter change over.
Features Features

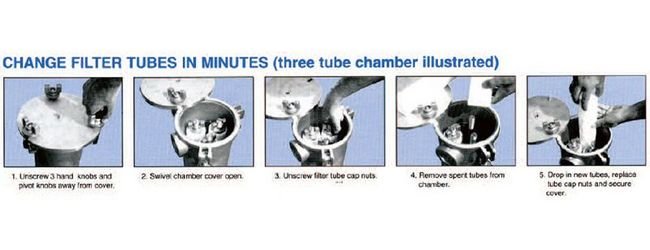

Filters light or heavy fluids to microscopic clarity.Heavy duty one piece welded chamber design.All 316 Stainless Steel construction.Filtration to 2700 GPH (10,220 LPH) at temperatures to 210ºF.(99ºC.)Pressure to 150 PSI. (10kg./cm.2)Fast and easy filter tube change over.
Filter Tubes Filter Tubes
Choose from cotton or polypropylene, depending on your application. Filter tubes are available in a wide variety of sizes for controlled filtration from 150 microns down to 1 micron. Standard densities are coarse 50 micron, medium 25 micron, fine 15 micron, x-fine 10 micron and 1-3 micron. Unless specified, chambers are provided with a set of cotton filter tubes with SS cores.Cotton filter tubes are recommended for moderately acid and moderately alkaline solutions ph 3-11.Polypropylene filter tubes are recommended for concentrated acid and alkaline solutions.
Filtration Systems With Sethco Pumps Filtration Systems With Set

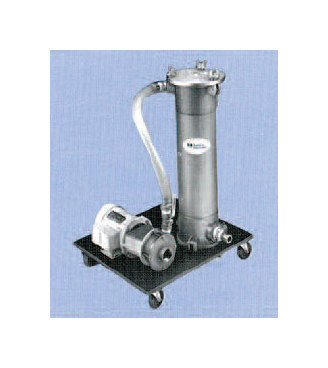

Sethco 316 stainless steel pumps come in a variety of sizes to accommodate any Sethco "SS" series filter chamber. Complete systems are mounted on a corrosion resistant panel with ball bearing swivel casters and are shipped completely assembled and tested, ready for immediate start-up.Visit www.sethco.com for ss pump details.
Optional Equipment Optional Equipment

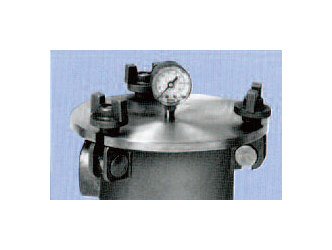

A stainless steel pressure gauge can be added to all chambers. PTFE O-rings are available for all models. A set of mounting pins are available for 3 tube mode is to facilitate mounting chambers to a panel or baseplate.
Specifications Inletoutlet
3/4 in NPT
Specifications Light Fluids Approximate Capacity
10 gpm | 38 lpm
Specifications Manufacturer
Sethco
Specifications Max Diameter
5-1/4 " | 13 cm
Specifications Net Weight
14 lbs | 6.3 kg
Specifications Overall Height
25-3/8 " | 64 cm
Specifications Quantity Of Filter Tubes In Chamber
1 | 2
Specifications Size Of Filter Tubes In Chamber
1 Tube - 20", 15 Micron | 2 Tubes - 10", 15 Micron
Specifications Viscous Fluids Approximate Capacity
5 gpm | 19 lpm
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Mefiag or an authorized distributor know; liquids being handled, gallons, temperatures and pH.The standard warranty does not apply when equipment is used contrary to factory recommendations. Since the policy of Mefiag is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
