Sethco Tank Vacuum System
Sethco Tank Vacuum System
SKU:FIL-2c8a53
Powerful 3-in-1 system for efficient removal of debris from electroplating tanks. Vacuum, filter, and pump with ease.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sethco Tank Vacuum System
$1,899.99
Quantity: 1
Claim Your Seller Account
Sethco Tank Vacuum System
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

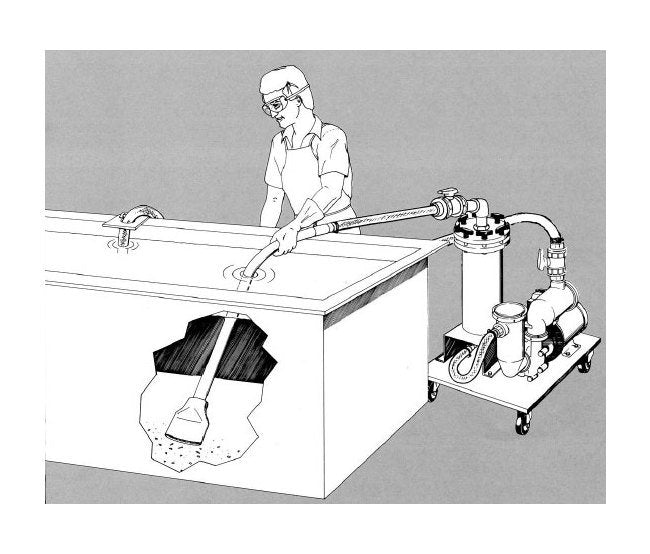

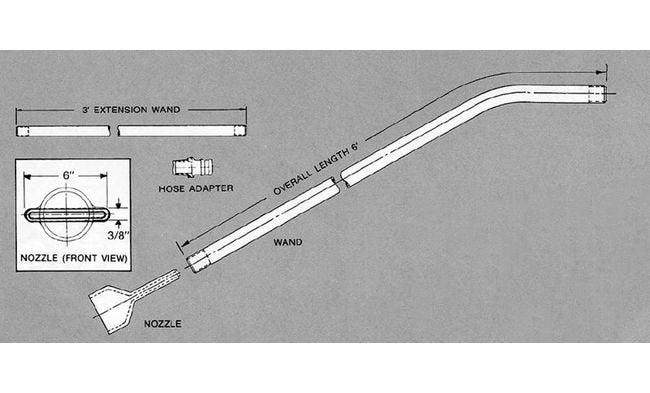

The Sethco Tank Vacuum System is a versatile solution for efficiently removing debris from electroplating tanks. This 3-in-1 system combines a powerful corrosive liquid vacuum cleaner, a high-flow bag filtration system, and a self-priming pump, creating a comprehensive setup for industrial tasks. With features like a rugged CPVC chamber, a self-priming sealless centrifugal pump, and a corrosion-resistant CPVC vacuum wand with a reinforced vinyl hose, this system simplifies maintenance tasks. It excels at vacuuming sludge, small parts, and chips from plating tanks, filtering solutions with reusable bags capturing contaminants as small as 1 micron, and transferring corrosive liquids with ease. Effortlessly handle daily pumping chores with the Sethco Tank Vacuum System.
Product Specifications
Specifications Bag Size
#5
Specifications Chamber Model No
DBG-5
Specifications Filter Area
5.2 ft²
Specifications Inlet Hose Id
VRV - 1-1/4 "
Specifications Manufacturer
Sethco
Specifications Max Pump Flow
60 gpm
Specifications Motor Power
2 hp
Specifications Motor Specifications
115/230 V, 50/60HZ, 1 PH. TEFC | 208-230/380-460 V, 50/60HZ, 3 PH. TEFC
Specifications Outlet Hose Id
NRV - 1-1/4 "
Specifications Pump Model No
PMSP-1040HG
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Sethco or an authorized distributor know: liquids being handled, gallons, temperature and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations. Since the policy of Sethco is one of continual Improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
