Sethco Tank Vacuum System - Filtration & Pumping Solution
Sethco Tank Vacuum System - Filtration & Pumping Solution
SKU:FIL-03a324
Powerful 3-in-1 Sethco Tank Vacuum System for efficient debris removal, filtration, and liquid transfer in electroplating applications.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Sethco Tank Vacuum System - Filtration & Pumping Solution
$2,799.99
Quantity: 1
Claim Your Seller Account
Sethco Tank Vacuum System - Filtration & Pumping Solution
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

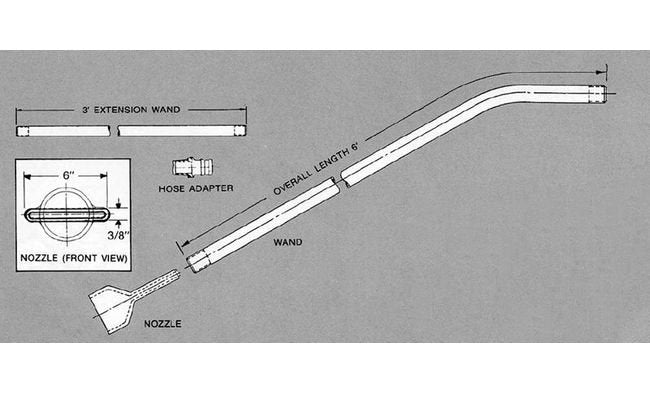

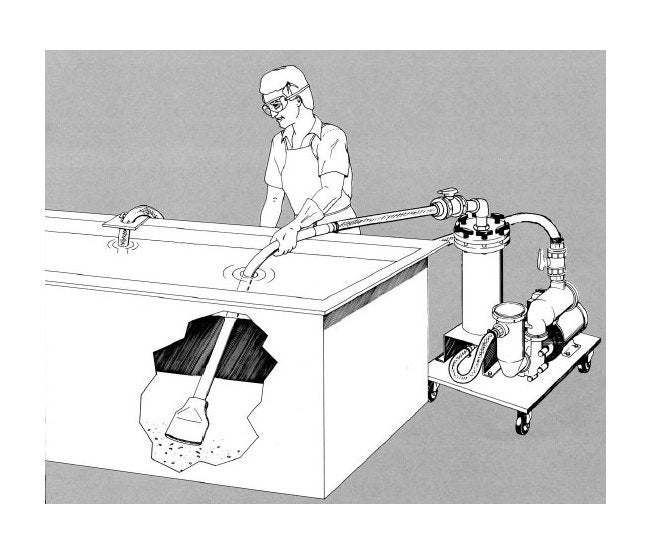

The Sethco Tank Vacuum System is a versatile 3-in-1 solution designed for easy removal of debris from electroplating tanks. This system combines a powerful corrosive liquid vacuum cleaner, high-flow bag filtration system, and self-priming pump in one compact unit. With a rugged CPVC chamber, sealless centrifugal pump, and corrosion-resistant vacuum wand, it offers efficient vacuuming, precise filtration down to 1 micron, and seamless liquid transfer capabilities. Ideal for filtering plating and corrosive solutions while also doubling as a utility pump for various pumping tasks. The system is backed by a one-year warranty against defective parts and workmanship.
Product Specifications
Specifications Bag Size
#2
Specifications Chamber Model No
DBG-2
Specifications Filter Area
1.9 ft²
Specifications Inlet Hose Id
VRV - 1-1/4 "
Specifications Manufacturer
Sethco
Specifications Max Pump Flow
52 gpm
Specifications Motor Power
1 hp
Specifications Motor Specifications
115/230 V, 50/60HZ, 1 PH. TEFC | 208-230/380-460 V, 50/60HZ, 3 PH. TEFC
Specifications Outlet Hose Id
NRV - 1-1/4 "
Specifications Pump Model No
PMSP-1040WT
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Sethco or an authorized distributor know: liquids being handled, gallons, temperature and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations. Since the policy of Sethco is one of continual Improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
