Sethco Tank-Vacuum System for Filtration
Sethco Tank-Vacuum System for Filtration
SKU:FIL-4920f9
Powerful 3-in-1 Sethco Tank-Vac system for efficient debris removal from electroplating tanks. Includes vacuum cleaner, high-flow filtration, and self-priming pump.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Sethco Tank-Vacuum System for Filtration
$2,799.99
Quantity: 1
Claim Your Seller Account
Sethco Tank-Vacuum System for Filtration
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

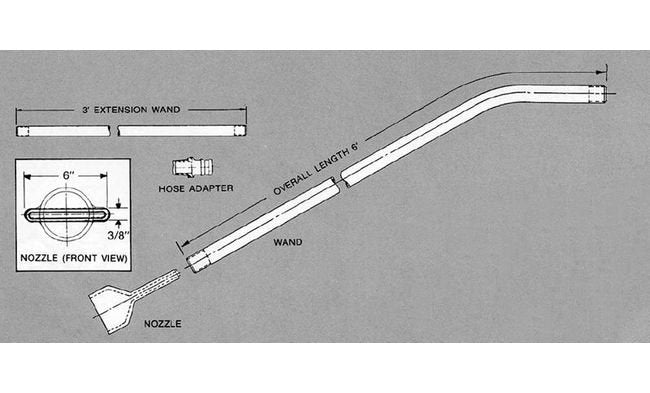

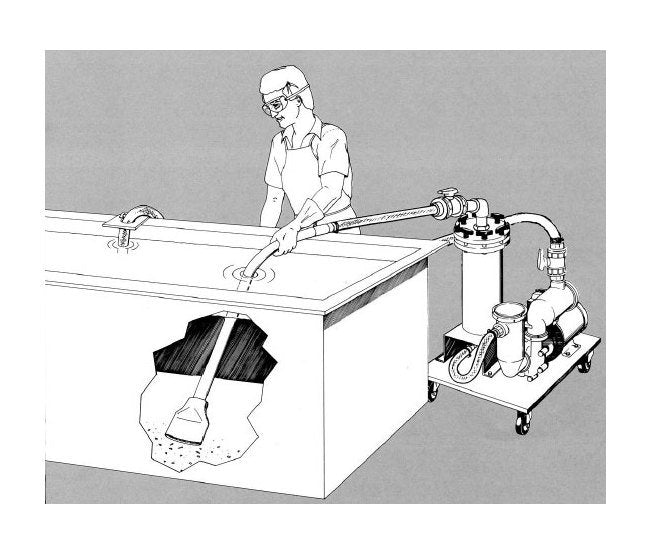

The Sethco Tank-Vacuum System is a versatile 3-in-1 solution designed for efficient removal of debris from electroplating tanks. It features a corrosive liquid vacuum cleaner, a high-flow bag filtration system, and a self-priming pump all in one compact unit. With a rugged CPVC chamber, a self-priming magnetic drive pump, and a corrosion-resistant vacuum wand with reinforced vinyl hose, this system ensures easy maintenance and cleaning of plating tanks. Suitable for filtering plating and corrosive solutions, the reusable filter bag can capture particles as small as 1 micron. Additionally, the self-priming pump enables safe and efficient transfer of corrosive liquids, making it a valuable asset for industrial applications.
Product Specifications
Specifications Bag Size
#3
Specifications Chamber Model No
DBG-3
Specifications Filter Area
3.0 ft²
Specifications Inlet Hose Id
VRV - 1-1/4 "
Specifications Manufacturer
Sethco
Specifications Max Pump Flow
60 gpm
Specifications Motor Power
2 hp
Specifications Motor Specifications
115/230 V, 50/60HZ, 1 PH. TEFC | 208-230/380-460 V, 50/60HZ, 3 PH. TEFC
Specifications Outlet Hose Id
NRV - 1-1/4 "
Specifications Pump Model No
PMSP-1040HG
Warranty Warranty
One year warranty against defective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let Sethco or an authorized distributor know: liquids being handled, gallons, temperature and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations. Since the policy of Sethco is one of continual Improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers.
