Sethco Three Tube Filter Chamber
Sethco Three Tube Filter Chamber
SKU:FIL-e15318
Experience efficient filtration with the Sethco Three Tube Filter Chamber, designed for easy maintenance and durability.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Sethco Three Tube Filter Chamber
$699.99
Quantity: 1
Claim Your Seller Account
Sethco Three Tube Filter Chamber
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

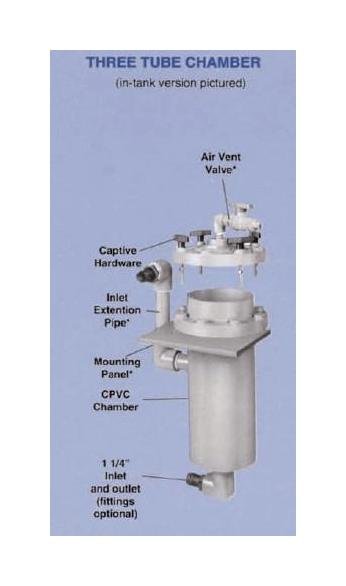

The Sethco Three Tube Filter Chamber, part of the Sethco Corrosion Resistant Filter Chambers line, offers versatile filtration options with a capacity ranging from 1200 to 1800 GPH. Constructed with CPVC or PVDF materials, this chamber ensures durability and resistance to corrosion. The chamber features easy maintenance with an inlet conveniently located at the side and discharge from the base for seamless filter media changeover. Compatible with standard filter tubes and suitable for tank or floor mounting, this chamber is a reliable filtration solution for various applications.
Product Specifications
Custom Twin Chamber Systems Available Custom Twin Chamber System
Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.

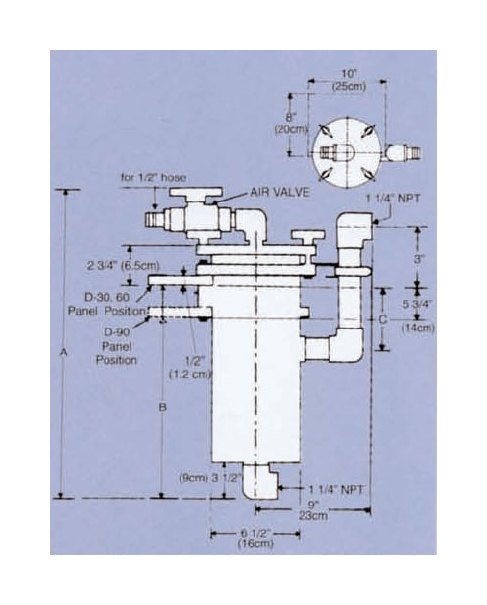

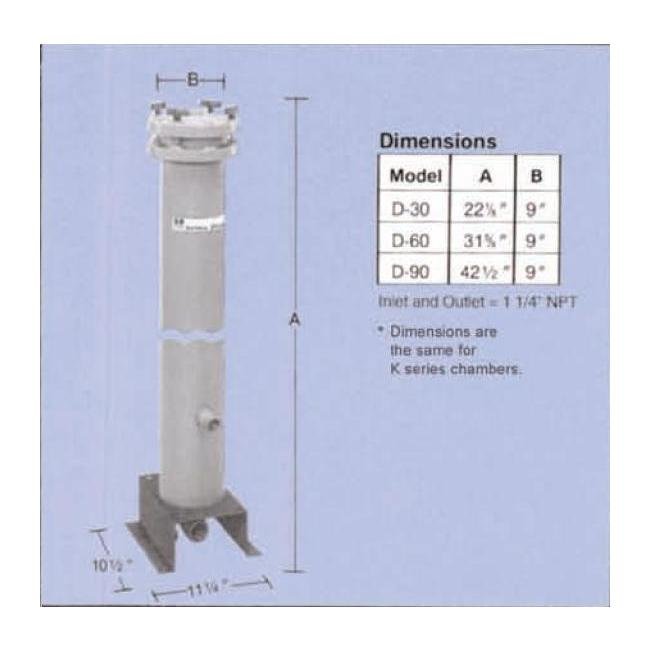

Specifications Dimension A
31-5/8 "
Specifications Dimension B
9 "
Specifications Inletoutlet
1-1/4 in NPT
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Pressure At 72f
50 psi
Specifications Max Temperature
200 ºF
Specifications Quantity Of Filter Tubes In Chamber
3 | 6
Specifications Recommended Filtration Rate Contamination High
600 to 1200 gph
Specifications Recommended Filtration Rate Contamination Low
1200 to 1800 gph
Specifications Series
D Series
Specifications Size Of Filter Tubes In Chamber
3 Tubes - 20", 15 Micron | 6 Tubes - 10", 15 Micron
Specifications Single Or Multi Filter Tube Chambers With

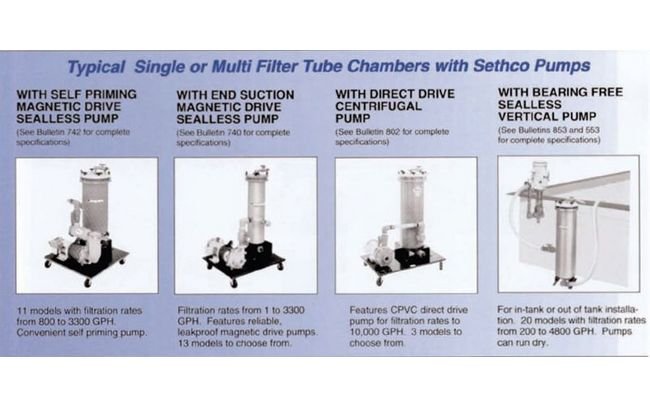

WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump. | 3 models to choose from WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry.
Specifications Weight
23.0 lbs
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
