Sethco Three Tube Filter Chamber for Efficient Filtration Systems
Sethco Three Tube Filter Chamber for Efficient Filtration Systems
SKU:FIL-9898c3
Reliable Sethco Three Tube Filter Chamber for 75-7200 GPH filtration rates. CPVC/PVDF construction, easy maintenance, and versatile mounting options.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Sethco Three Tube Filter Chamber for Efficient Filtration Systems
$699.99
Quantity: 1
Claim Your Seller Account
Sethco Three Tube Filter Chamber for Efficient Filtration Systems
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

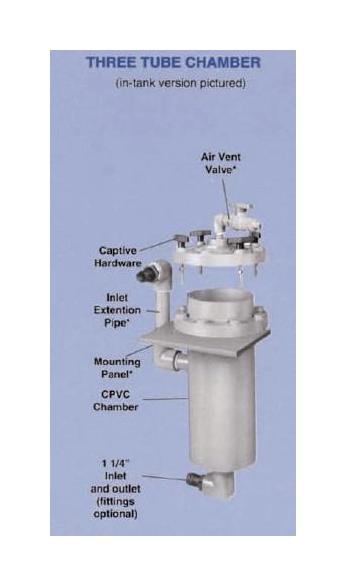

The Sethco Three Tube Filter Chamber is a versatile filtration solution designed for high-volume applications, with filtration rates ranging from 75 GPH to 7200 GPH. Constructed of CPVC or PVDF for exceptional corrosion resistance, this chamber features a user-friendly design with easy access for filter media changeover. With options for tank or floor mounting, and compatibility with standard double open end filter tubes, this chamber offers flexibility and efficiency. Choose from different pump options to suit your specific filtration needs, ensuring reliable performance and optimal filtration rates. Backed by a one-year warranty, this filter chamber is built to deliver consistent, high-quality results for your filtration requirements.
Product Specifications
Custom Twin Chamber Systems Available Custom Twin Chamber System
Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.

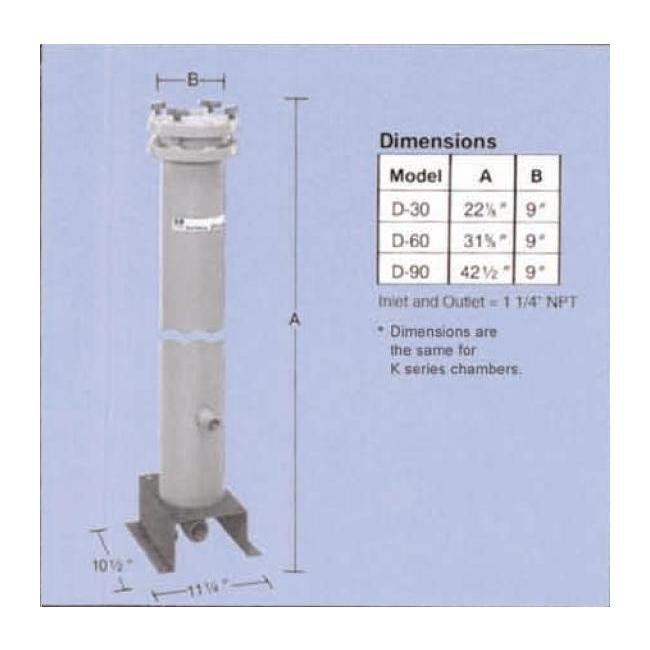

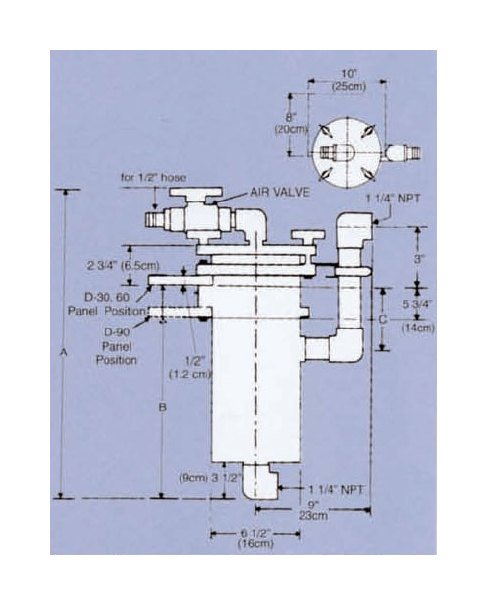

Specifications Dimension A
42-1/2 "
Specifications Dimension B
9 "
Specifications Inletoutlet
1-1/4 in NPT
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Pressure At 72f
50 psi
Specifications Max Temperature
200 ºF
Specifications Quantity Of Filter Tubes In Chamber
3 | 9
Specifications Recommended Filtration Rate Contamination High
900 to 1800 gph
Specifications Recommended Filtration Rate Contamination Low
1800 to 2700 gph
Specifications Series
D Series
Specifications Size Of Filter Tubes In Chamber
3 Tubes - 20", 15 Micron | 9 Tubes - 10", 15 Micron
Specifications Single Or Multi Filter Tube Chambers With

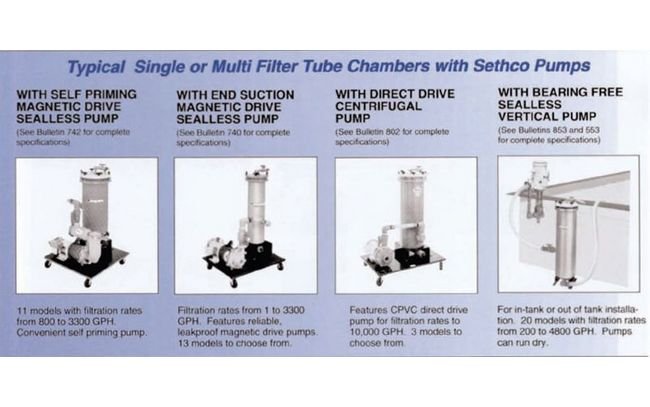

WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump. | 3 models to choose from WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry.
Specifications Weight
29.0 lbs
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
