Sethco Twelve Tube CPVC Filter Chamber
Sethco Twelve Tube CPVC Filter Chamber
SKU:FIL-5e10f7
High-performance Twelve Tube CPVC Filter Chamber for industrial-scale, high-flow filtration needs. Durable, efficient, and reliable.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Sethco Twelve Tube CPVC Filter Chamber
$1,599.99
Quantity: 1
Claim Your Seller Account
Sethco Twelve Tube CPVC Filter Chamber
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco Twelve Tube Filter Chamber, part of the corrosion-resistant D Series, offers high-volume filtration capabilities up to 7200 GPH. Constructed from CPVC, it can withstand temperatures up to 200ºF and pressures up to 50 psi. With 12 tubes of 20" size, tailored for heavy dirt levels and corrosive liquids, this chamber excels in industrial settings requiring robust filtration. Compatible with Sethco pumps, this chamber ensures efficient and reliable filtration performance, making it ideal for applications demanding precision and durability.
Product Specifications
Custom Twin Chamber Systems Available Custom Twin Chamber System
Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.

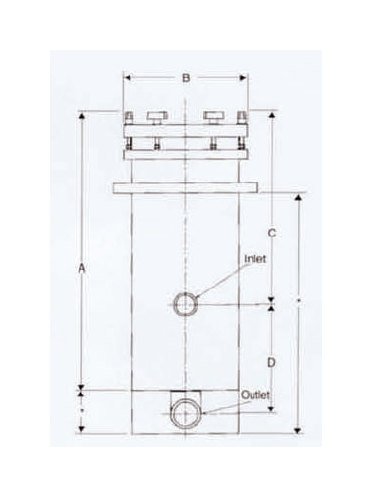

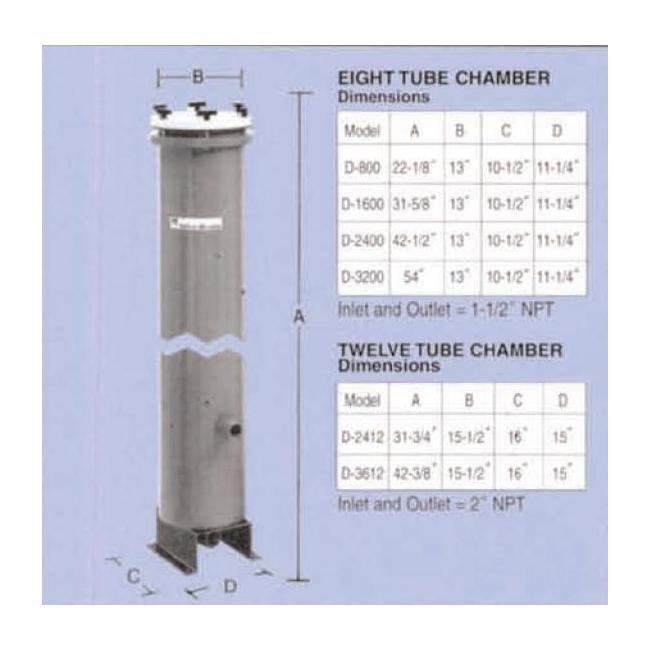

Specifications Dimension A
31-3/4 "
Specifications Dimension B
15-1/2 "
Specifications Dimension C
16 "
Specifications Dimension D
15 "
Specifications Inletoutlet
2 in NPT
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Pressure At 72f
50 psi
Specifications Max Temperature
200 ºF
Specifications Quantity Of Filter Tubes In Chamber
12 | 24
Specifications Recommended Filtration Rate Contamination High
2600 to 5000 gph
Specifications Recommended Filtration Rate Contamination Low
5000 to 6800 gph
Specifications Series
D Series
Specifications Size Of Filter Tubes In Chamber
12 Tubes - 20", 15 Micron | 24 Tubes - 10", 15 Micron

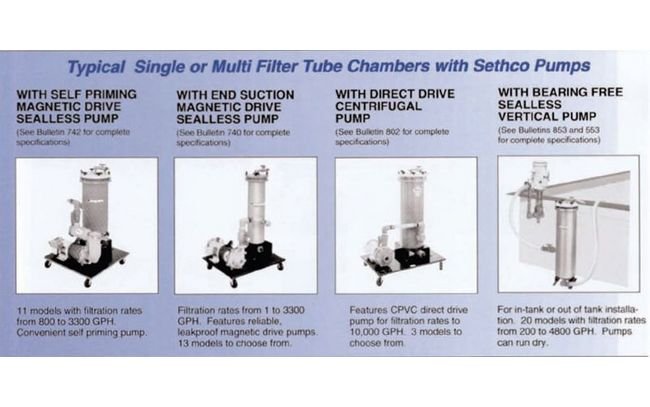

Specifications Single Or Multi Filter Tube Chambers With
WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump. | 3 models to choose from WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry.
Specifications Weight
98.0 lbs
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
