Sethco Twelve Tube Filter Chamber
Sethco Twelve Tube Filter Chamber
SKU:FIL-46245c
Sethco Twelve Tube Filter Chamber - High-volume CPVC filtration system for corrosive liquids, filtration rates up to 7200 GPH.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Sethco Twelve Tube Filter Chamber
$1,899.99
Quantity: 1
Claim Your Seller Account
Sethco Twelve Tube Filter Chamber
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

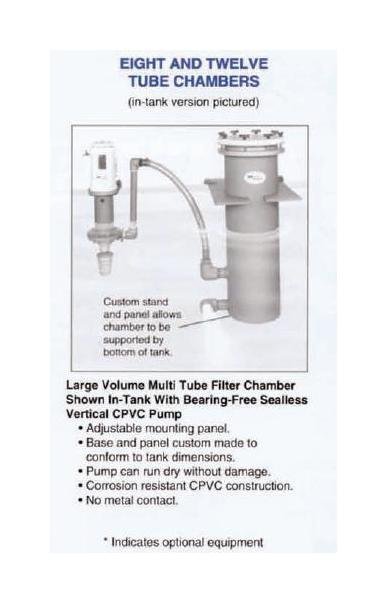

The Sethco Twelve Tube Filter Chamber, part of the Sethco Corrosion Resistant Filter Chambers line, is a high-volume CPVC filtration system designed to efficiently handle large flows and heavy dirt levels of corrosive liquids. With a filtration rate ranging from 75 GPH to an impressive 7200 GPH, this chamber can accommodate a variety of standard filter tubes, providing flexibility and superior filtration performance. Mounted on a sturdy corrosion-resistant stand, this chamber offers versatility for floor or in-tank mounting, making it ideal for diverse industrial applications requiring high flow rates and exceptional durability.
Product Specifications
Custom Twin Chamber Systems Available Custom Twin Chamber System
Add a carbon chamber, bag chamber or resin chamber to any Sethco Filter System or use twin filter cartridge chambers in series with different density media. If higher flow rates or greater din holding capacity is required use 2 chambers n parallel. Call your Distributor or our sales department to discuss your application.

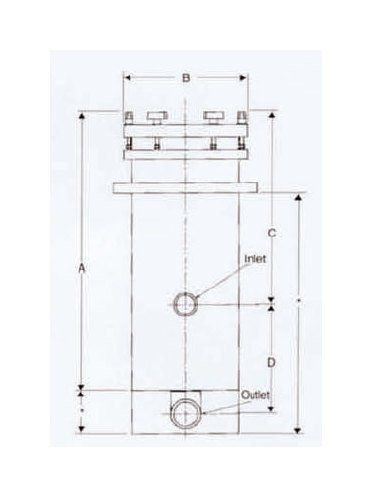

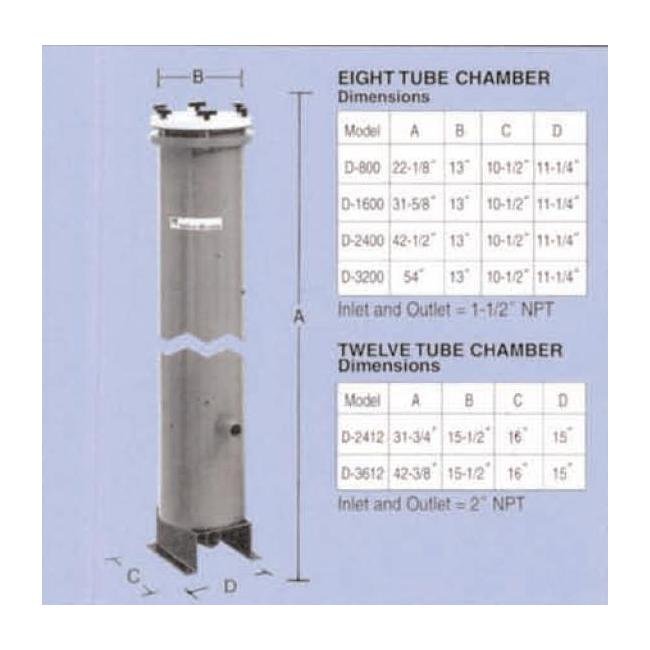

Specifications Dimension A
42-3/8 "
Specifications Dimension B
15-1/2 "
Specifications Dimension C
16 "
Specifications Dimension D
15 "
Specifications Inletoutlet
2 in NPT
Specifications Manufacturer
Sethco
Specifications Material
CPVC
Specifications Max Pressure At 72f
50 psi
Specifications Max Temperature
200 ºF
Specifications Quantity Of Filter Tubes In Chamber
12 | 36
Specifications Recommended Filtration Rate Contamination High
3800 to 6200 gph
Specifications Recommended Filtration Rate Contamination Low
6200 to 8000 gph
Specifications Series
D Series
Specifications Size Of Filter Tubes In Chamber
12 Tubes - 30", 15 Micron | 36 Tubes - 10", 15 Micron
Specifications Single Or Multi Filter Tube Chambers With

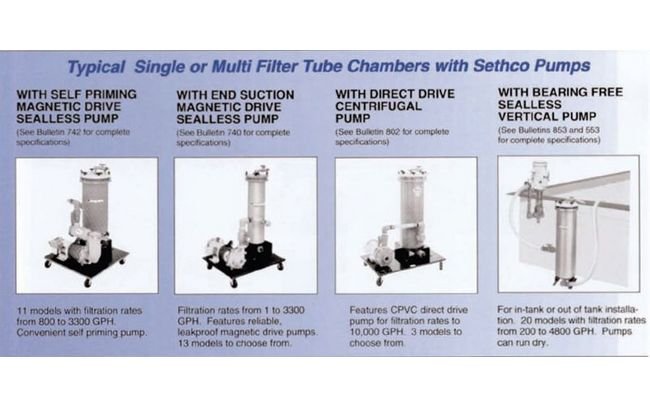

WITH DIRECT DRIVE CENTRIFUGAL PUMP - Features CPVC direct drive pump for filtration rates to 10,000 GPH. | WITH END SUCTION MAGNETIC DRIVE SEALLESS PUMP - Filtration rates from 1 to 3300 GPH. Features reliable, leakproof magnetic drive pumps 13 models to choose from. | WITH SELF PRIMING MAGNETIC DRIVE SEALLESS PUMP - 11 models with filtration rates from 800 to 3300 GPH. Convenient self priming pump. | 3 models to choose from WITH BEARING FREE SEALLESS VERTICAL PUMP - For in-tank or out of tank installation 20 models with filtration rates from 200 to 4800 GPH. Pumps can run dry.
Specifications Weight
135.0 lbs
Warranty Warranty
One year warranty against detective parts and workmanship. See Form TC-01 for full warranty details. Always be specific about your application in order that proper materials may be furnished. Let us or an authored distributor know liquids being handled gallons, temperatures and pH. The standard warranty does not apply when equipment is used contrary to factory recommendations.Since our policy is one of continual improvement, we reserve the right to change design or materials at any time, without giving notice or creating any obligation to previous or future customers
