Sethco ZDX-1/12CS-1/20T2 CPVC Sealless Cantilever Pump
Sethco ZDX-1/12CS-1/20T2 CPVC Sealless Cantilever Pump
SKU:PUM-d5da17
Reliable Sethco ZDX-1/12CS-1/20T2 CPVC Sealless Cantilever Pump for efficient pumping with durable CPVC construction, ideal for institutional use.
Regular price
$1,143.00
Regular price
Sale price
$1,143.00
Unit price
per
Initiate Order
Sethco ZDX-1/12CS-1/20T2 CPVC Sealless Cantilever Pump
$1,143.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX-1/12CS-1/20T2 CPVC Sealless Cantilever Pump
$1,143.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

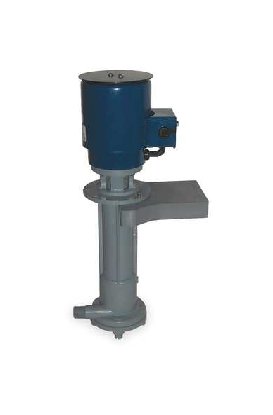

The Sethco ZDX-1/12CS-1/20T2 CPVC Sealless Cantilever Pump is a reliable and efficient solution for various pumping applications. With a horsepower of 1/20, voltage of 230V, and single-phase construction using CPVC with Viton O-Rings, this pump ensures durability and chemical resistance. It offers a maximum flow of 10 gpm, maximum head TDH of 10 ft, and can operate at temperatures up to 200°F. The motor specifications include a 230V, 50/60Hz, 1ph TEFC design with an on-off switch and line cord, and the pump features a CPVC sleeve shaft and bearing-free design for low maintenance needs. Ideal for institutional and government buyers requiring quality and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
1/20
Specifications Inlet Connection
1/2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
10 gpm | 38 lpm
Specifications Max Head Tdh 60 Hz
10 ft | 3 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230V, 50/60Hz, 1ph TEFC with On-Off Switch & Line Cord
Specifications Outlet Connection
1/2" NPT
Specifications Phase
Single
Specifications Price
1143.00 USD
Specifications Shaft Material
CPVC Sleeve
Specifications Voltage
230 V
Specifications Weight Net
9 lbs | 4.11 kg
