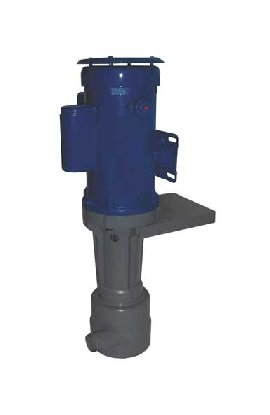

Sethco ZDX-1GS-1T2 CPVC Sealless Cantilever Pump
Sethco ZDX-1GS-1T2 CPVC Sealless Cantilever Pump
SKU:PUM-9370e4
Reliable Sethco ZDX-1GS-1T2 CPVC Sealless Cantilever Pump with 1 HP, CPVC Construction, and 76 gpm Flow
Regular price
$2,002.00
Regular price
Sale price
$2,002.00
Unit price
per
Initiate Order
Sethco ZDX-1GS-1T2 CPVC Sealless Cantilever Pump
$2,002.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX-1GS-1T2 CPVC Sealless Cantilever Pump
$2,002.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX-1GS-1T2 CPVC Sealless Cantilever Pump is a reliable solution for various pumping applications. With a horsepower of 1 and construction using CPVC with Viton O-Rings, this pump offers a maximum flow of 76 gpm and can handle temperatures up to 200°F. The pump features a stainless steel shaft with a CPVC sleeve, ensuring durability and corrosion resistance. It is equipped with a 230V, single-phase TEFC motor and comes with an on-off switch and line cord for easy operation. Designed for efficiency and longevity, this pump is a dependable choice for institutional and government buyers.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
1
Specifications Inlet Connection
1 1/2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
76 gpm | 288 lpm
Specifications Max Head Tdh 60 Hz
48 ft | 14.6 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230V, 50/60Hz, 1ph TEFC with On-Off Switch & Line Cord
Specifications Outlet Connection
1 1/4" NPT
Specifications Phase
Single
Specifications Price
2002.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V
Specifications Weight Net
53 lbs | 24 kg
