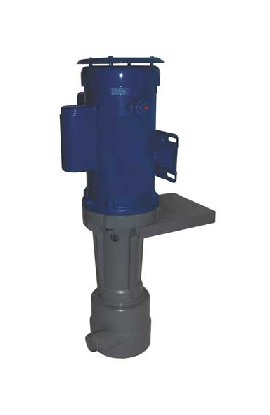

Sethco ZDX-1GS-1T3 CPVC Sealless Cantilever Pump
Sethco ZDX-1GS-1T3 CPVC Sealless Cantilever Pump
SKU:PUM-053373
Efficient and durable Sethco ZDX-1GS-1T3 CPVC Sealless Cantilever Pump for industrial needs. Max flow 76 gpm, max head TDH 48 ft, CPVC construction.
Regular price
$1,922.00
Regular price
Sale price
$1,922.00
Unit price
per
Initiate Order
Sethco ZDX-1GS-1T3 CPVC Sealless Cantilever Pump
$1,922.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX-1GS-1T3 CPVC Sealless Cantilever Pump
$1,922.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX-1GS-1T3 CPVC Sealless Cantilever Pump offers reliable pumping solutions for industrial and institutional needs. With a horsepower of 1, voltage options of 230V and 460V, and a construction of CPVC with Viton O-Rings, this pump ensures efficient operation and longevity. It boasts a max flow of 76 gpm, max head TDH of 48 ft, and can operate at temperatures up to 200°F. The stainless steel shaft with CPVC sleeve and bearing-free design enhance durability, making it a cost-effective choice for various applications.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
1
Specifications Inlet Connection
1/2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
76 gpm | 288 lpm
Specifications Max Head Tdh 60 Hz
48 ft | 14.6 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230/460V, 50/60Hz, 3ph TEFC
Specifications Outlet Connection
1/2" NPT
Specifications Phase
Three
Specifications Price
1922.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
53 lbs | 24 kg
