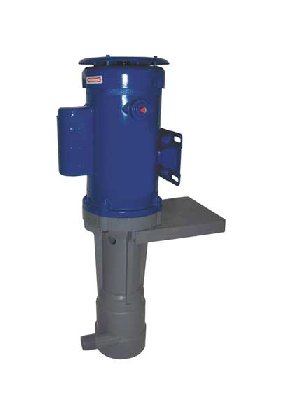

Sethco ZDX-3/4CHHS-3/4T1 CPVC Sealless Cantilever Pump

Name: Sethco ZDX-3/4CHHS-3/4T1 CPVC Sealless Cantilever Pump
Brand: Metafin Supply Company
SKU: PUM-352297
Price: 1863.0 USD
Availability: OutOfStock

SKU:PUM-352297

Powerful Sethco ZDX-3/4CHHS-3/4T1 CPVC Sealless Cantilever Pump for reliable performance in various applications.

$1,863.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sethco ZDX-3/4CHHS-3/4T1 CPVC Sealless Cantilever Pump is a reliable solution for various pumping applications. With a horsepower of 3/4, voltage of 115V, and CPVC construction with Viton O-Rings, this pump delivers a maximum flow of 41 gpm and can handle a max. head TDH of 47 ft. It is designed for a maximum operating temperature of 200°F and features a stainless steel shaft with CPVC sleeve. Additionally, it weighs 52 lbs and comes with a motor suitable for 50Hz/60Hz operation. Ideal for institutional use due to its robust design and compliance with industry standards.

Product Specifications

Note Note

Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation

Specifications Bearing Material

Bearing Free

Specifications Construction

CPVC with Viton O-Rings

Specifications Horsepower 50hz60hz

3/4

Specifications Inlet Connection

1 1/4" NPT

Specifications Manufacturer

Sethco

Specifications Max Flow 60 Hz

41 gpm | 155 lpm

Specifications Max Head Tdh 60 Hz

47 ft | 14.3 m

Specifications Max Operating Temperature

200 ÂºF | 93 ÂºC

Specifications Motor Specifications

115V, 50/60Hz, 1ph TEFC with On-Off Switch, Line Cord & Plug

Specifications Outlet Connection

1" NPT

Specifications Phase

Single

Specifications Price

1863.00 USD

Specifications Shaft Material

Stainless Steel with CPVC Sleeve

Specifications Voltage

115 V

Specifications Weight Net

52 lbs | 23.6 kg
