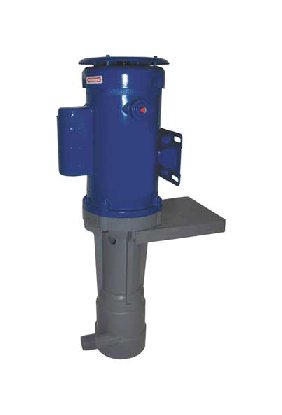

Sethco ZDX-3/4CHHS-3/4T3 CPVC Sealless Cantilever Pump
Sethco ZDX-3/4CHHS-3/4T3 CPVC Sealless Cantilever Pump
SKU:PUM-4b2e63
Efficient Sethco ZDX-3/4CHHS-3/4T3 CPVC Sealless Cantilever Pump for reliable performance in various applications.
Regular price
$1,837.00
Regular price
Sale price
$1,837.00
Unit price
per
Initiate Order
Sethco ZDX-3/4CHHS-3/4T3 CPVC Sealless Cantilever Pump
$1,837.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX-3/4CHHS-3/4T3 CPVC Sealless Cantilever Pump
$1,837.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX-3/4CHHS-3/4T3 CPVC Sealless Cantilever Pump is a reliable choice for various pumping applications. With a horsepower of 3/4, CPVC construction with Viton O-Rings, and a max flow of 41 gpm, it ensures efficient and leak-free operation. Designed for durability and performance, this pump offers a max operating temperature of 200°F and features stainless steel shaft material. It meets stringent industry standards, making it ideal for institutional and government procurement needs.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
3/4
Specifications Inlet Connection
1 1/4" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
41 gpm | 155 lpm
Specifications Max Head Tdh 60 Hz
47 ft | 14.3 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230/460V, 50/60Hz, 3ph TEFC
Specifications Outlet Connection
1" NPT
Specifications Phase
Three
Specifications Price
1837.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
52 lbs | 23.6 kg
