Sethco ZDX-3BS-3T3 CPVC Sealless Cantilever Pump
Sethco ZDX-3BS-3T3 CPVC Sealless Cantilever Pump
SKU:PUM-f9719f
High-performance Sethco ZDX-3BS-3T3 CPVC Sealless Cantilever Pump for industrial applications. 3 HP, 230V/460V, CPVC construction, max flow 105 gpm.
Regular price
$3,442.00
Regular price
Sale price
$3,442.00
Unit price
per
Initiate Order
Sethco ZDX-3BS-3T3 CPVC Sealless Cantilever Pump
$3,442.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX-3BS-3T3 CPVC Sealless Cantilever Pump
$3,442.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

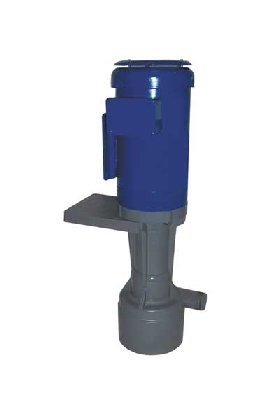

The Sethco ZDX-3BS-3T3 CPVC Sealless Cantilever Pump is a high-performance solution designed for demanding industrial applications. With a horsepower of 3, voltage options of 230V or 460V, and a construction of CPVC with Viton O-Rings, this pump ensures efficient and reliable operation. It features a max flow of 105 gpm, max head TDH of 81 ft, and a maximum operating temperature of 180°F. The pump is equipped with a stainless steel shaft and CPVC sleeve, ensuring durability and corrosion resistance.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
3
Specifications Inlet Connection
2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
105 gpm | 397 lpm
Specifications Max Head Tdh 60 Hz
81 ft | 24.7 m
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Motor Specifications
230/460V, 50/60Hz, 3ph TEFC
Specifications Outlet Connection
1 1/2" NPT
Specifications Phase
Three
Specifications Price
3442.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
70 lbs | 31.8 kg
