Sethco ZDX-5BS-5T3 CPVC Sealless Cantilever Pump
Sethco ZDX-5BS-5T3 CPVC Sealless Cantilever Pump
SKU:PUM-849c09
Sethco ZDX-5BS-5T3 CPVC Sealless Cantilever Pump. Corrosion-resistant construction, max flow 140 gpm, max head TDH 109 ft, operating temperature up to 180°F.
Regular price
$3,666.00
Regular price
Sale price
$3,666.00
Unit price
per
Initiate Order
Sethco ZDX-5BS-5T3 CPVC Sealless Cantilever Pump
$3,666.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX-5BS-5T3 CPVC Sealless Cantilever Pump
$3,666.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

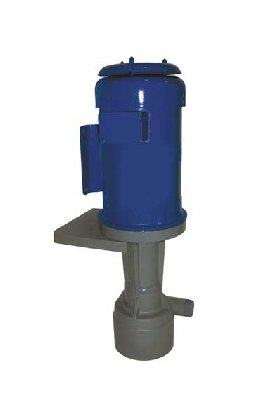

The Sethco ZDX-5BS-5T3 CPVC Sealless Cantilever Pump is a high-performance pump designed for industrial applications. With a construction of CPVC and Viton O-Rings, this pump is built to handle corrosive fluids with ease. It boasts a max flow rate of 140 gpm, a max head TDH of 109 ft, and a max operating temperature of 180°F, making it suitable for a wide range of tasks. The stainless steel shaft with CPVC sleeve ensures durability, while the bearing-free design reduces maintenance needs. Suitable for 50Hz/60Hz operation, this pump is a reliable choice for demanding environments.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
5
Specifications Inlet Connection
2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
140 gpm | 530 lpm
Specifications Max Head Tdh 60 Hz
109 ft | 33 m
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Motor Specifications
230/460V, 50/60Hz, 3ph TEFC
Specifications Outlet Connection
1 1/2" NPT
Specifications Phase
Three
Specifications Price
3666.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
105 lbs | 47.6 kg
