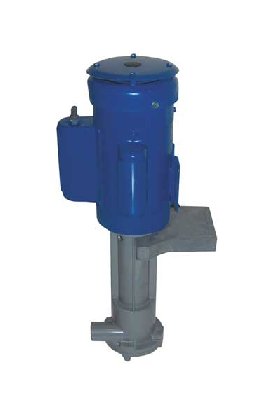

Sethco ZDX Series CPVC Sealless Cantilever Pump

Name: Sethco ZDX Series CPVC Sealless Cantilever Pump
Brand: Metafin Supply Company
SKU: PUM-0d35ce
Price: 1148.0 USD
Availability: OutOfStock

SKU:PUM-0d35ce

Reliable Sethco ZDX CPVC Sealless Cantilever Pump for efficient pumping operations.

$1,148.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sethco ZDX Series CPVC Sealless Cantilever Pump is a reliable and efficient solution for various pumping applications. With a construction of CPVC and Viton O-Rings, this pump ensures durability and chemical resistance. It features a 1/4 horsepower motor suitable for 50Hz/60Hz operation, providing a max flow of 20 gpm and a max head TDH of 21 ft. The stainless steel shaft with CPVC sleeve and bearing-free design enhances longevity and reduces maintenance needs. Ideal for government and institutional use due to its compliance with industry standards and reliable performance.

Product Specifications

Note Note

Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation

Specifications Bearing Material

Bearing Free

Specifications Construction

CPVC with Viton O-Rings

Specifications Horsepower 50hz60hz

1/4

Specifications Inlet Connection

1" NPT

Specifications Manufacturer

Sethco

Specifications Max Flow 60 Hz

20 gpm | 75 lpm

Specifications Max Head Tdh 60 Hz

21 ft | 6.4 m

Specifications Max Operating Temperature

200 ÂºF | 93 ÂºC

Specifications Motor Specifications

115V, 50/60Hz, 1ph (TEFC) with On-Off Switch, Line Cord & Plug

Specifications Outlet Connection

3/4" NPT

Specifications Phase

Single

Specifications Price

1148.00 USD

Specifications Shaft Material

Stainless Steel with CPVC Sleeve

Specifications Voltage

115 V

Specifications Weight Net

28 lbs | 12.7 kg

Sethco ZDX Series CPVC Sealless Cantilever Pump
