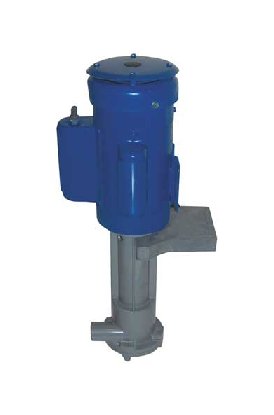

Sethco ZDX Series CPVC Sealless Cantilever Pump
Sethco ZDX Series CPVC Sealless Cantilever Pump
SKU:PUM-4d645c
Reliable Sethco ZDX Series CPVC Sealless Cantilever Pump, 1/4 HP, maximum flow 20 gpm, corrosion-resistant construction, ideal for industrial applications.
Regular price
$1,225.00
Regular price
Sale price
$1,225.00
Unit price
per
Initiate Order
Sethco ZDX Series CPVC Sealless Cantilever Pump
$1,225.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX Series CPVC Sealless Cantilever Pump
$1,225.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX Series CPVC Sealless Cantilever Pump is a reliable solution designed for industrial applications requiring corrosion-resistant materials. With a horsepower of 1/4 and construction of CPVC with Viton O-Rings, this pump ensures durability and efficient performance. It features a max flow of 20 gpm, max head TDH of 21 ft, and can operate at temperatures up to 200°F. The stainless steel shaft with CPVC sleeve and bearing-free design enhance longevity, while the 230V single-phase motor with on-off switch provides convenience. Suitable for 50Hz/60Hz operation, this pump is ideal for diverse pumping needs.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
1/4
Specifications Inlet Connection
1" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
20 gpm | 75 lpm
Specifications Max Head Tdh 60 Hz
21 ft | 6.4 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230V, 50/60Hz, 1ph TEFC with On-Off Switch & Line Cord
Specifications Outlet Connection
3/4" NPT
Specifications Phase
Single
Specifications Price
1225.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V
Specifications Weight Net
28 lbs | 12.7 kg
