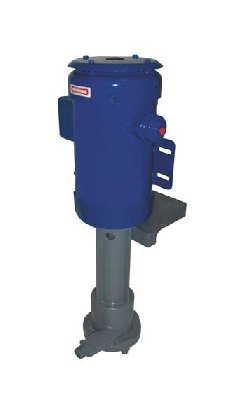

Sethco ZDX Series CPVC Sealless Cantilever Pump
Sethco ZDX Series CPVC Sealless Cantilever Pump
SKU:PUM-3d9760
Reliable Sethco ZDX Series CPVC Sealless Cantilever Pump for efficient pumping operations.
Regular price
$1,312.00
Regular price
Sale price
$1,312.00
Unit price
per
Initiate Order
Sethco ZDX Series CPVC Sealless Cantilever Pump
$1,312.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX Series CPVC Sealless Cantilever Pump
$1,312.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX Series CPVC Sealless Cantilever Pump is designed for reliable and efficient pumping operations. With a horsepower of 1/4 and a construction of CPVC with Viton O-Rings, this pump ensures durability and chemical resistance. It offers a maximum flow of 16.4 gpm and a maximum head TDH of 21 ft, making it suitable for various industrial applications. The motor specifications include 230V, 50/60Hz, 3ph TEFC with an on-off switch and line cord for easy operation.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
1/4
Specifications Inlet Connection
3/4" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
16.4 gpm | 62 lpm
Specifications Max Head Tdh 60 Hz
21 ft | 6.4 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230V, 50/60Hz, 3ph TEFC with On-Off Switch & Line Cord
Specifications Outlet Connection
1/2" NPT
Specifications Phase
Three
Specifications Price
1312.00 USD
Specifications Shaft Material
CPVC Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
25 lbs | 12.7 kg
