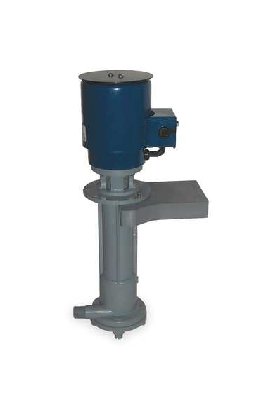

Sethco ZDX Series CPVC Sealless Cantilever Pump
Sethco ZDX Series CPVC Sealless Cantilever Pump
SKU:PUM-07359c
Efficient and durable Sethco ZDX Series CPVC Sealless Cantilever Pump for reliable pumping applications.
Regular price
$1,062.00
Regular price
Sale price
$1,062.00
Unit price
per
Initiate Order
Sethco ZDX Series CPVC Sealless Cantilever Pump
$1,062.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX Series CPVC Sealless Cantilever Pump
$1,062.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX Series CPVC Sealless Cantilever Pump is a reliable solution for various pumping applications, featuring a construction of CPVC with Viton O-Rings for durability and chemical resistance. With a max flow of 10 gpm and a max head TDH of 10 ft, this pump is suitable for handling a range of fluids efficiently. The motor specifications include a 115V, 60Hz, 1ph TEFC design with essential components like an on-off switch, line cord, and plug, ensuring easy installation and operation. Ideal for institutional use, this pump meets stringent construction standards for reliable and long-lasting performance.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
1/20
Specifications Inlet Connection
1/2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
10 gpm | 38 lpm
Specifications Max Head Tdh 60 Hz
10 ft | 3 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
115V, 60Hz, 1ph TEFC with On-Off Swithch, Line Cord & Plug
Specifications Outlet Connection
1/2" NPT
Specifications Phase
Single
Specifications Price
1062.00 USD
Specifications Shaft Material
CPVC Sleeve
Specifications Voltage
115 V
Specifications Weight Net
9 lbs | 4.11 kg
