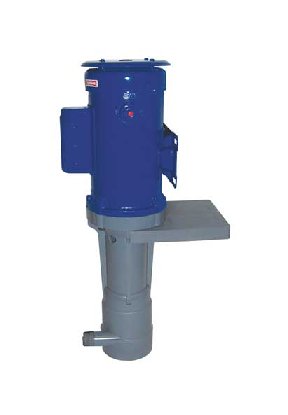

Sethco ZDX Series CPVC Sealless Cantilever Pump - 3/4 HP, 115V, Single Phase
Sethco ZDX Series CPVC Sealless Cantilever Pump - 3/4 HP, 115V, Single Phase
SKU:PUM-52d0d3
Sethco ZDX Series CPVC Sealless Cantilever Pump - 3/4 HP, 115V, Corrosion-Resistant Construction, Ideal for Various Applications
Regular price
$1,688.00
Regular price
Sale price
$1,688.00
Unit price
per
Initiate Order
Sethco ZDX Series CPVC Sealless Cantilever Pump - 3/4 HP, 115V, Single Phase
$1,688.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX Series CPVC Sealless Cantilever Pump - 3/4 HP, 115V, Single Phase
$1,688.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX Series CPVC Sealless Cantilever Pump is a reliable and efficient solution for various pumping applications. With a horsepower of 3/4 and a construction of CPVC with Viton O-Rings, this pump ensures corrosion resistance and durability. It offers a maximum flow of 34 gpm, a maximum head TDH of 35 ft, and can operate at temperatures up to 200°F. The pump features a stainless steel shaft with a CPVC sleeve, bearing-free design, and comes with a 115V single-phase motor with essential accessories. Ideal for institutional and government procurement due to its compliance with industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
3/4
Specifications Inlet Connection
1 1/4" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
34 gpm | 129 lpm
Specifications Max Head Tdh 60 Hz
35 ft | 10.6 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
115V, 50/60Hz, 1ph TEFC with On-Off Switch, Line Cord & Plug
Specifications Outlet Connection
1" NPT
Specifications Phase
Single
Specifications Price
1688.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
115 V
Specifications Weight Net
52 lbs | 23.6 kg
