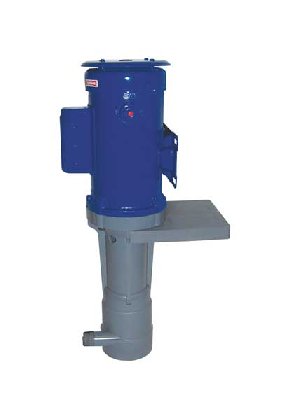

Sethco ZDX Series CPVC Sealless Cantilever Pump - 3/4 HP, 230V, Single Phase
Sethco ZDX Series CPVC Sealless Cantilever Pump - 3/4 HP, 230V, Single Phase
SKU:PUM-3efadd
Reliable Sethco ZDX Series CPVC Sealless Cantilever Pump for industrial applications. Corrosion-resistant, leak-free design. Max flow: 34 gpm, Max head TDH: 35 ft.
Regular price
$1,796.00
Regular price
Sale price
$1,796.00
Unit price
per
Initiate Order
Sethco ZDX Series CPVC Sealless Cantilever Pump - 3/4 HP, 230V, Single Phase
$1,796.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX Series CPVC Sealless Cantilever Pump - 3/4 HP, 230V, Single Phase
$1,796.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX Series CPVC Sealless Cantilever Pump is a reliable solution designed for industrial applications requiring corrosion-resistant and leak-free operation. With a maximum flow rate of 34 gpm and a max head TDH of 35 ft, this pump is constructed with CPVC and Viton O-Rings, ensuring durability and compatibility with a wide range of chemicals. The pump features a stainless steel shaft, bearing-free design, and operates at a maximum temperature of 200 °F. Compliant with stringent industry standards, this pump is suitable for 50/60Hz operations, making it ideal for institutional and government procurement needs.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
3/4
Specifications Inlet Connection
1 1/4" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
34 gpm | 129 lpm
Specifications Max Head Tdh 60 Hz
35 ft | 10.6 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230V, 50/60Hz, 1ph TEFC with On-Off Switch, Line Cord & Plug
Specifications Outlet Connection
1" NPT
Specifications Phase
Single
Specifications Price
1796.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V
Specifications Weight Net
52 lbs | 23.6 kg
