Sethco ZDX Series CPVC Sealless Cantilever Pump

Sethco ZDX Series CPVC Sealless Cantilever Pump

PUM-74cf1e

Reliable Sethco ZDX Series CPVC Sealless Cantilever Pump for efficient pumping operations in institutional environments.

$2,139.00
$2,139.00
Sale

Initiate Order

Sethco ZDX Series CPVC Sealless Cantilever Pump

Sethco ZDX Series CPVC Sealless Cantilever Pump

$2,139.00

Quantity: 1

Claim Your Seller Account

Sethco ZDX Series CPVC Sealless Cantilever Pump

Sethco ZDX Series CPVC Sealless Cantilever Pump

$2,139.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

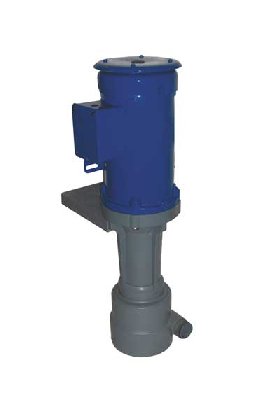

The Sethco ZDX Series CPVC Sealless Cantilever Pump is a robust and reliable solution for various pumping applications. With a horsepower of 2 and construction of CPVC with Viton O-Rings, it offers a max flow of 94 gpm and can handle temperatures up to 200°F. The stainless steel shaft with CPVC sleeve ensures durability, while the bearing-free design minimizes maintenance needs. This pump, designed by Sethco, is ideal for institutional settings requiring efficiency and longevity.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
2
Specifications Inlet Connection
1 1/2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
94 gpm | 356 lpm
Specifications Max Head Tdh 60 Hz
64 ft | 19.5 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230/460V, 50/60Hz, 3ph TEFC
Specifications Outlet Connection
1 1/4" NPT
Specifications Phase
Three
Specifications Price
2139.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
53 lbs | 24 kg
