Sethco ZDX Series CPVC Sealless Cantilever Pump
Sethco ZDX Series CPVC Sealless Cantilever Pump
SKU:PUM-5ec5dc
Reliable Sethco ZDX Series CPVC Sealless Cantilever Pump with 1/6 HP, 16.4 gpm flow, CPVC construction, and 230V single-phase motor.
Regular price
$1,705.00
Regular price
Sale price
$1,705.00
Unit price
per
Initiate Order
Sethco ZDX Series CPVC Sealless Cantilever Pump
$1,705.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX Series CPVC Sealless Cantilever Pump
$1,705.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

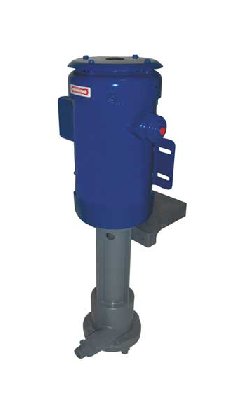

The Sethco ZDX Series CPVC Sealless Cantilever Pump is a reliable solution for various pumping applications. With a horsepower of 1/6 and a single-phase motor operating at 230V, this pump offers a max flow of 16.4 gpm and can handle a max head TDH of 21 ft. Constructed with CPVC and Viton O-Rings, it can withstand a maximum operating temperature of 200°F. The pump features CPVC sleeve shaft material, bearing-free design, and inlet/outlet connections for easy installation. Trust Sethco's quality engineering for efficient and durable pumping performance.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
1/6
Specifications Inlet Connection
3/4" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
16.4 gpm | 62 lpm
Specifications Max Head Tdh 60 Hz
21 ft | 6.4 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230V, 50/60Hz, 1ph TEFC with On-Off Switch & Line Cord
Specifications Outlet Connection
1/2" NPT
Specifications Phase
Single
Specifications Price
1705.00 USD
Specifications Shaft Material
CPVC Sleeve
Specifications Voltage
230 V
Specifications Weight Net
25 lbs | 11.3 kg
