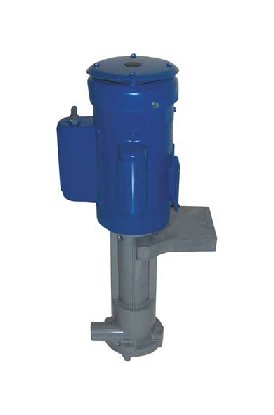

Sethco ZDX Series CPVC Sealless Cantilever Pumps
Sethco ZDX Series CPVC Sealless Cantilever Pumps
SKU:PUM-99d282
Reliable Sethco ZDX Series CPVC Sealless Pumps for industrial applications. Chemical-resistant construction, max flow 20 gpm, and high efficiency.
Regular price
$1,235.00
Regular price
Sale price
$1,235.00
Unit price
per
Initiate Order
Sethco ZDX Series CPVC Sealless Cantilever Pumps
$1,235.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX Series CPVC Sealless Cantilever Pumps
$1,235.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX Series CPVC Sealless Cantilever Pumps are engineered for reliability and durability in demanding industrial environments. With a construction of CPVC and Viton O-Rings, these pumps offer exceptional chemical resistance. Featuring a maximum flow of 20 gpm and a max head TDH of 21 ft, these pumps deliver consistent performance. The stainless steel shaft with CPVC sleeve ensures long-lasting operation. Designed with compliance to industry standards and with a motor suitable for 50hz/60hz operation, these pumps are ideal for institutional and government procurement needs.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
1/4
Specifications Inlet Connection
1" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
20 gpm | 75 lpm
Specifications Max Head Tdh 60 Hz
21 ft | 6.4 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230/460V, 50/60Hz, 3ph TEFC
Specifications Outlet Connection
3/4" NPT
Specifications Phase
Three
Specifications Price
1235.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
28 lbs | 12.7 kg
