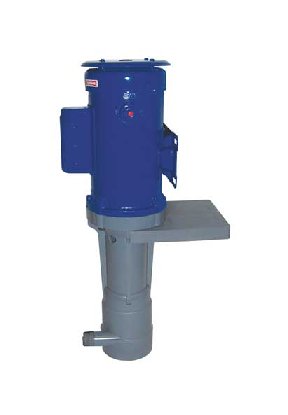

Sethco ZDX Series CPVC Sealless Cantilever Pumps
Sethco ZDX Series CPVC Sealless Cantilever Pumps
SKU:PUM-001b04
Reliable Sethco ZDX Series CPVC Sealless Cantilever Pumps for industrial fluid transfer. CPVC construction, 34 gpm flow, and 35 ft head TDH.
Regular price
$1,883.00
Regular price
Sale price
$1,883.00
Unit price
per
Initiate Order
Sethco ZDX Series CPVC Sealless Cantilever Pumps
$1,883.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX Series CPVC Sealless Cantilever Pumps
$1,883.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sethco ZDX Series CPVC Sealless Cantilever Pumps are designed for reliable and efficient fluid transfer in industrial applications. With a construction of CPVC and Viton O-Rings, these pumps ensure excellent chemical resistance and durability. The pump's motor specifications include 230/460V, 50/60Hz, 3ph TEFC, making them suitable for a wide range of operational requirements. Additionally, the stainless steel shaft with CPVC sleeve and bearing-free design enhances the longevity and performance of these pumps. Ideal for handling corrosive fluids, the ZDX Series offers a max flow of 34 gpm and a max head TDH of 35 ft.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
3/4
Specifications Inlet Connection
1 1/4" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
34 gpm | 129 lpm
Specifications Max Head Tdh 60 Hz
35 ft | 10.6 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
230/460V, 50/60Hz, 3ph TEFC
Specifications Outlet Connection
1" NPT
Specifications Phase
Three
Specifications Price
1883.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
52 lbs | 23.6 kg
