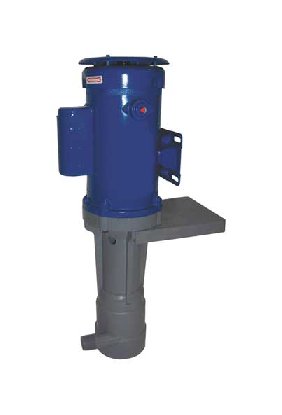

Sethco ZDX Series CPVC Sealless Cantilever Pumps

Name: Sethco ZDX Series CPVC Sealless Cantilever Pumps
Brand: Metafin Supply Company
SKU: PUM-3800bc
Price: 1721.0 USD
Availability: OutOfStock

SKU:PUM-3800bc

High-performance Sethco ZDX Series CPVC Sealless Cantilever Pumps for efficient pumping operations with CPVC construction and 3/4 HP.

$1,721.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sethco ZDX Series CPVC Sealless Cantilever Pumps are designed for reliable and efficient pumping operations. With a horsepower of 3/4 and a voltage of 230V, these pumps offer a max flow of 41 gpm and a max head TDH of 47 ft. Constructed with CPVC material and Viton O-Rings, they can withstand a max operating temperature of 200°F. The stainless steel shaft with CPVC sleeve ensures durability, while the bearing-free design reduces maintenance needs. Ideal for various applications, these pumps come with inlet and outlet connections for easy installation.

Product Specifications

Note Note

Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation

Specifications Bearing Material

Bearing Free

Specifications Construction

CPVC with Viton O-Rings

Specifications Horsepower 50hz60hz

3/4

Specifications Inlet Connection

1 1/4" NPT

Specifications Manufacturer

Sethco

Specifications Max Flow 60 Hz

41 gpm | 155 lpm

Specifications Max Head Tdh 60 Hz

47 ft | 14.3 m

Specifications Max Operating Temperature

200 ÂºF | 93 ÂºC

Specifications Motor Specifications

230V, 50/60Hz, 1ph TEFC with On-Off Switch, Line Cord & Plug

Specifications Outlet Connection

1" NPT

Specifications Phase

Single

Specifications Price

1721.00 USD

Specifications Shaft Material

Stainless Steel with CPVC Sleeve

Specifications Voltage

230 V

Specifications Weight Net

52 lbs | 23.6 kg

Sethco ZDX Series CPVC Sealless Cantilever Pumps
