Sethco ZDX Series CPVC Sealless Cantilever Pumps
Sethco ZDX Series CPVC Sealless Cantilever Pumps
SKU:PUM-5a22e9
Efficient Sethco ZDX Series CPVC Sealless Cantilever Pumps for reliable fluid transfer in industrial settings.
Regular price
$1,832.00
Regular price
Sale price
$1,832.00
Unit price
per
Initiate Order
Sethco ZDX Series CPVC Sealless Cantilever Pumps
$1,832.00
Quantity: 1
Claim Your Seller Account
Sethco ZDX Series CPVC Sealless Cantilever Pumps
$1,832.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

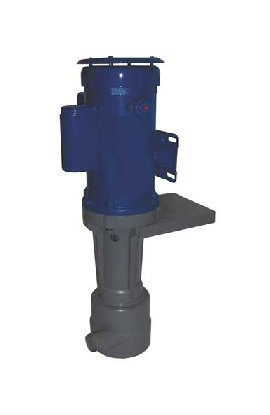

The Sethco ZDX Series CPVC Sealless Cantilever Pumps, model ZDX-1GS-1T1, are designed for reliable and efficient fluid transfer in a variety of applications. With a horsepower of 1 and maximum flow of 76 gpm, these pumps offer outstanding performance. Constructed with CPVC and Viton O-Rings, they can withstand temperatures up to 200ºF. The stainless steel shaft with CPVC sleeve ensures durability, while the bearing-free design reduces maintenance needs. Ideal for institutional and government procurement.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Above pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
CPVC with Viton O-Rings
Specifications Horsepower 50hz60hz
1
Specifications Inlet Connection
1 1/2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
76 gpm | 288 lpm
Specifications Max Head Tdh 60 Hz
48 ft | 14.6 m
Specifications Max Operating Temperature
200 ºF | 93 ºC
Specifications Motor Specifications
115V, 50/60Hz, 1ph TEFC with On-Off Switch, Line Cord & Plug
Specifications Outlet Connection
1 1/4" NPT
Specifications Phase
Single
Specifications Price
1832.00 USD
Specifications Shaft Material
Stainless Steel with CPVC Sleeve
Specifications Voltage
115 V
Specifications Weight Net
53 lbs | 24 kg
