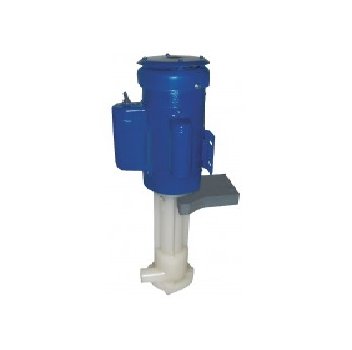

Sethco ZKX PVDF Sealless Cantilever Pump

Name: Sethco ZKX PVDF Sealless Cantilever Pump
Brand: Metafin Supply Company
SKU: PUM-3e9d36
Price: 2073.0 USD
Availability: OutOfStock

SKU:PUM-3e9d36

Dependable Sethco ZKX PVDF Sealless Cantilever Pump for chemical-resistant and high-temperature pumping applications.

$2,073.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience reliable pumping performance with the Sethco ZKX PVDF Sealless Cantilever Pump. Powered by a 1/4 HP motor, this pump offers a max flow of 20 gpm, constructed with Kynar (PVDF) for chemical resistance. Operating at temperatures up to 210°F, it features stainless steel shaft with Kynar sleeve, making it durable and ideal for various applications. Complete with 230V motor and easy installation, this pump is a dependable choice for industrial needs, meeting stringent quality standards.

Product Specifications

Note Note

Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation

Specifications Bearing Material

Bearing Free

Specifications Construction

Kynar (PVDF) with EPDM O-Rings

Specifications Horsepower 50hz60hz

1/4

Specifications Inlet Connection

1/2" NPT

Specifications Manufacturer

Sethco

Specifications Max Flow 60 Hz

20 gpm | 75 lpm

Specifications Max Head Tdh 60 Hz

21 ft | 6.4 m

Specifications Max Operating Temperature

210 ÂºF | 99 ÂºC

Specifications Motor Specifications

230V, 50/60Hz, 1ph TEFC with On-Off Switch & Line Cord

Specifications Outlet Connection

3/4" NPT

Specifications Phase

Single

Specifications Price

2073.00 USD

Specifications Shaft Material

Stainless Steel with Kynar Sleeve

Specifications Voltage

230 V

Specifications Weight Net

28 lbs | 12.7 kg

Sethco ZKX PVDF Sealless Cantilever Pump
