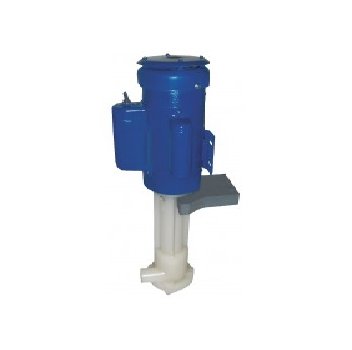

Sethco ZKX Series PVDF Sealless Cantilever Pump

Name: Sethco ZKX Series PVDF Sealless Cantilever Pump
Brand: Metafin Supply Company
SKU: PUM-0b16ce
Price: 1872.0 USD
Availability: OutOfStock

SKU:PUM-0b16ce

Efficient Sethco ZKX Series PVDF Sealless Cantilever Pump with 1/4 HP, 230V/460V voltage, and 20 gpm flow rate for industrial applications.

$1,872.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sethco ZKX Series PVDF Sealless Cantilever Pump is a reliable and durable solution for various fluid transfer applications. With a horsepower of 1/4, voltage options of 230V or 460V, and a max flow of 20 gpm, this pump ensures efficient performance. Constructed with Kynar (PVDF) and EPDM O-Rings, it offers excellent chemical resistance and can handle a maximum operating temperature of 210°F. The stainless steel shaft with a Kynar sleeve ensures longevity and reliability. This pump, manufactured by Sethco, is a superior choice for industrial pumping needs.

Product Specifications

Note Note

Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation

Specifications Bearing Material

Bearing Free

Specifications Construction

Kynar (PVDF) with EPDM O-Rings

Specifications Horsepower 50hz60hz

1/4

Specifications Inlet Connection

1/2" NPT

Specifications Manufacturer

Sethco

Specifications Max Flow 60 Hz

20 gpm | 75 lpm

Specifications Max Head Tdh 60 Hz

21 ft | 6.4 m

Specifications Max Operating Temperature

210 ÂºF | 99 ÂºC

Specifications Motor Specifications

230/460V, 50/60Hz, 3ph TEFC

Specifications Outlet Connection

3/4" NPT

Specifications Phase

Three

Specifications Price

1872.00 USD

Specifications Shaft Material

Stainless Steel with Kynar Sleeve

Specifications Voltage

230 V | 460 V

Specifications Weight Net

28 lbs | 12.7 kg
