Sethco ZKX Series PVDF Sealless Cantilever Pump
Sethco ZKX Series PVDF Sealless Cantilever Pump
SKU:PUM-bc2265
The Sethco ZKX Series PVDF Sealless Cantilever Pump - high performance, corrosion-resistant, and maintenance-friendly solution for industrial applications.
Regular price
$3,089.00
Regular price
Sale price
$3,089.00
Unit price
per
Initiate Order
Sethco ZKX Series PVDF Sealless Cantilever Pump
$3,089.00
Quantity: 1
Claim Your Seller Account
Sethco ZKX Series PVDF Sealless Cantilever Pump
$3,089.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

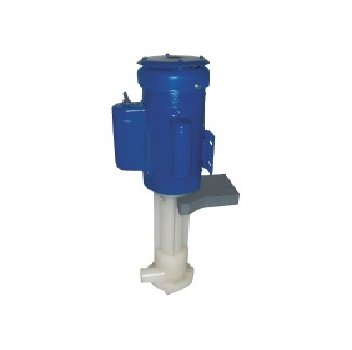

The Sethco ZKX Series PVDF Sealless Cantilever Pump, model ZKX-1GS-1T3, is a robust solution designed for industrial applications requiring corrosion resistance and durability. With a horsepower of 1 and multiple voltage options (230V/460V), this pump delivers a maximum flow of 76 gpm, constructed with Kynar (PVDF) and EPDM o-rings to withstand temperatures up to 210°F. Its innovative design features a stainless steel shaft with a Kynar sleeve, bearing-free construction, and convenient 1 1/2" NPT inlet and 1 1/4" NPT outlet connections. Ideal for demanding environments, this sealless pump guarantees reliable performance and easy maintenance.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
Kynar (PVDF) with EPDM O-Rings
Specifications Horsepower 50hz60hz
1
Specifications Inlet Connection
1 1/2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
76 gpm | 288 lpm
Specifications Max Head Tdh 60 Hz
48 ft | 14.6 m
Specifications Max Operating Temperature
210 ºF | 99 ºC
Specifications Motor Specifications
230/460V, 50/60Hz, 3ph TEFC
Specifications Outlet Connection
1 1/4" NPT
Specifications Phase
Three
Specifications Price
3089.00 USD
Specifications Shaft Material
Stainless Steel with Kynar Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
53 lbs | 24 kg
