Sethco ZKX Series PVDF Sealless Cantilever Pump - ZKX-1GS-1T2

Name: Sethco ZKX Series PVDF Sealless Cantilever Pump - ZKX-1GS-1T2
Brand: Metafin Supply Company
SKU: PUM-37dfcd
Price: 3114.0 USD
Availability: OutOfStock

SKU:PUM-37dfcd

High-performance Sethco ZKX-1GS-1T2 sealless cantilever pump designed for industrial applications, featuring Kynar construction and stainless steel shaft.

$3,114.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

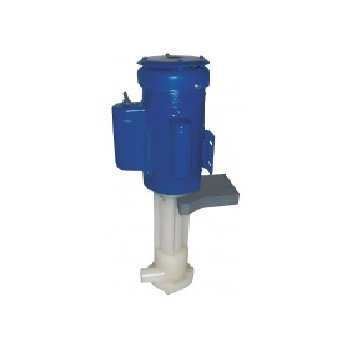

The Sethco ZKX-1GS-1T2 is a high-performance sealless cantilever pump designed for demanding industrial applications. With a horsepower of 1, max flow of 76 gpm, and a construction of Kynar (PVDF) with EPDM O-Rings, this pump delivers reliable and efficient operation. The stainless steel shaft with a Kynar sleeve ensures durability, while the motor specifications of 230V, 50/60Hz, 1ph TEFC make it versatile. Meeting industry standards for quality and performance, this pump is a trusted solution for a wide range of pumping needs.

Product Specifications

Note Note

Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation

Specifications Bearing Material

Bearing Free

Specifications Construction

Kynar (PVDF) with EPDM O-Rings

Specifications Horsepower 50hz60hz

Specifications Inlet Connection

1 1/2" NPT

Specifications Manufacturer

Sethco

Specifications Max Flow 60 Hz

76 gpm | 288 lpm

Specifications Max Head Tdh 60 Hz

48 ft | 14.6 m

Specifications Max Operating Temperature

210 ÂºF | 99 ÂºC

Specifications Motor Specifications

230V, 50/60Hz, 1ph TEFC with On-Off Switch & Line Cord

Specifications Outlet Connection

1 1/4" NPT

Specifications Phase

Single

Specifications Price

3114.00 USD

Specifications Shaft Material

Stainless Steel with Kynar Sleeve

Specifications Voltage

230 V

Specifications Weight Net

53 lbs | 24 kg

Sethco ZKX Series PVDF Sealless Cantilever Pump - ZKX-1GS-1T2
