Sethco ZKX Series PVDF Sealless Cantilever Pumps
Sethco ZKX Series PVDF Sealless Cantilever Pumps
SKU:PUM-e19334
High-performance Sethco ZKX Series PVDF Sealless Cantilever Pumps for industrial applications with robust Kynar construction and 94 gpm flow rate.
Regular price
$3,496.00
Regular price
Sale price
$3,496.00
Unit price
per
Initiate Order
Sethco ZKX Series PVDF Sealless Cantilever Pumps
$3,496.00
Quantity: 1
Claim Your Seller Account
Sethco ZKX Series PVDF Sealless Cantilever Pumps
$3,496.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

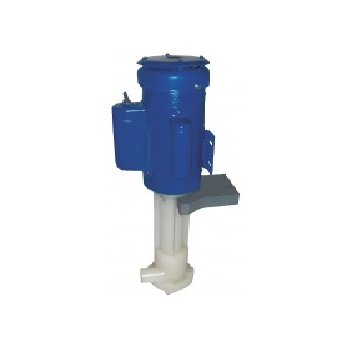

The Sethco ZKX Series PVDF Sealless Cantilever Pumps are designed for high-performance industrial applications, featuring a robust Kynar (PVDF) construction with EPDM O-Rings for excellent chemical resistance. With a maximum flow rate of 94 gpm and a maximum head TDH of 64 ft, these pumps deliver reliable operation. The stainless steel shaft with Kynar sleeve ensures durability, while the motor specifications of 230/460V, 50/60Hz, 3ph TEFC provide efficient power. Ideal for handling corrosive fluids, these pumps meet stringent industry standards for quality and performance.
Product Specifications
Note Note
Single phase motors are wired with on-off switch and line cord.115V 1-PH motors include plug. 230V 1-PH motors do not include plug.Pricing includes mounting panel only. Consult factory for pumps provided with hose, discharge pipe, and strainer.All motors are suitable for 50hz/60hz operation
Specifications Bearing Material
Bearing Free
Specifications Construction
Kynar (PVDF) with EPDM O-Rings
Specifications Horsepower 50hz60hz
2
Specifications Inlet Connection
1 1/2" NPT
Specifications Manufacturer
Sethco
Specifications Max Flow 60 Hz
94 gpm | 356 lpm
Specifications Max Head Tdh 60 Hz
64 ft | 19.5 m
Specifications Max Operating Temperature
210 ºF | 99 ºC
Specifications Motor Specifications
230/460V, 50/60Hz, 3ph TEFC
Specifications Outlet Connection
1 1/4" NPT
Specifications Phase
Three
Specifications Price
3496.00 USD
Specifications Shaft Material
Stainless Steel with Kynar Sleeve
Specifications Voltage
230 V | 460 V
Specifications Weight Net
53 lbs | 24 kg
