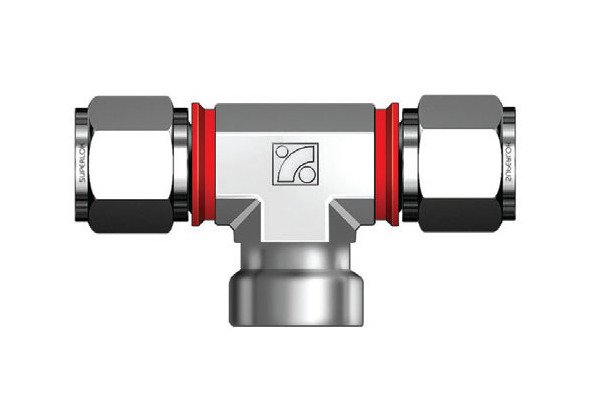

The SFBTI Series Female Branch Tee Fitting is a precision-engineered solution for connecting fractional tubes to male NPT threads. Crafted from high-quality materials like Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures robust performance in diverse industrial environments. Featuring i-Fitting® components, it offers enhanced safety, productivity, and cost-efficiency with its patented check ring design. Ideal for valve connections, this fitting simplifies installations and guarantees optimal compression, making it a reliable choice for high-pressure applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

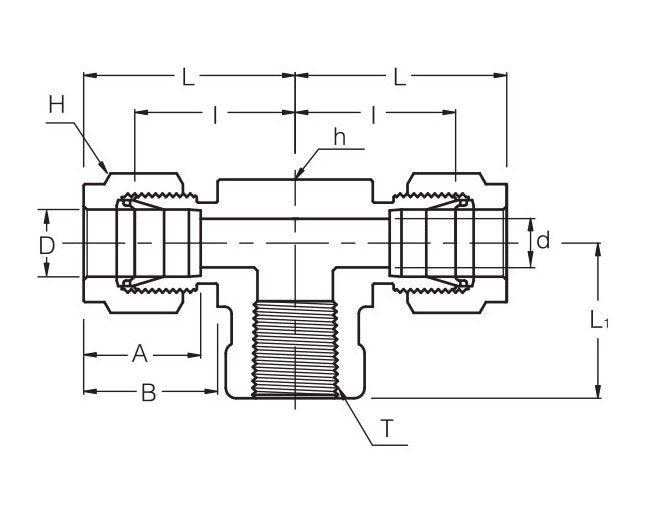

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
19.55 mm
Technical Specs Dimension L
26.92 mm
Technical Specs Dimension L1
19.05 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
