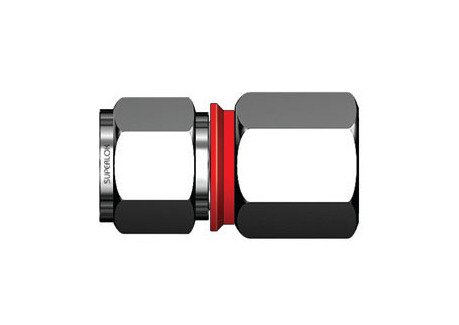

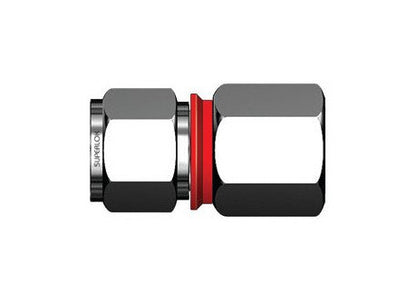

SFCI 10mm Tube OD Female Connector Fitting
SFCI 10mm Tube OD Female Connector Fitting
SKU:SFC-a74904
Effortlessly connect metric tubes to male ISO threads with the SFCI 10mm Tube OD Female Connector Fitting, providing industry-leading safety and productivity enhancements.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SFCI 10mm Tube OD Female Connector Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SFCI 10mm Tube OD Female Connector Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFCI Series 10mm Tube OD Female Connector Fitting is designed to connect metric tubes to male ISO threads effortlessly. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durable and reliable performance. Featuring i-Fitting® components for perfect compression, enhanced safety in high-pressure environments, and impeccable productivity, the SFCI Connector Fitting is industry-changing with its patented design by BMT.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

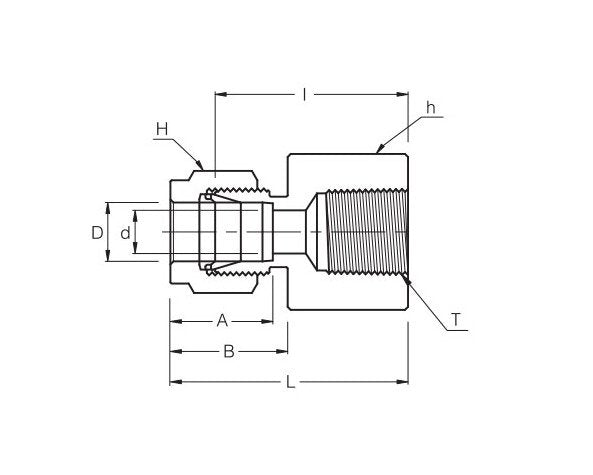

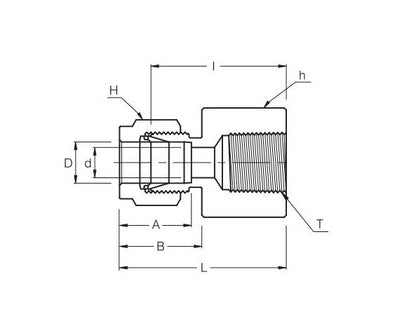

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
17.2 mm
Technical Specs Dimension B
19.5 mm
Technical Specs Dimension I
31.8 mm
Technical Specs Dimension L
39.4 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
10 mm
Technical Specs Width Across Flat H
19 mm
